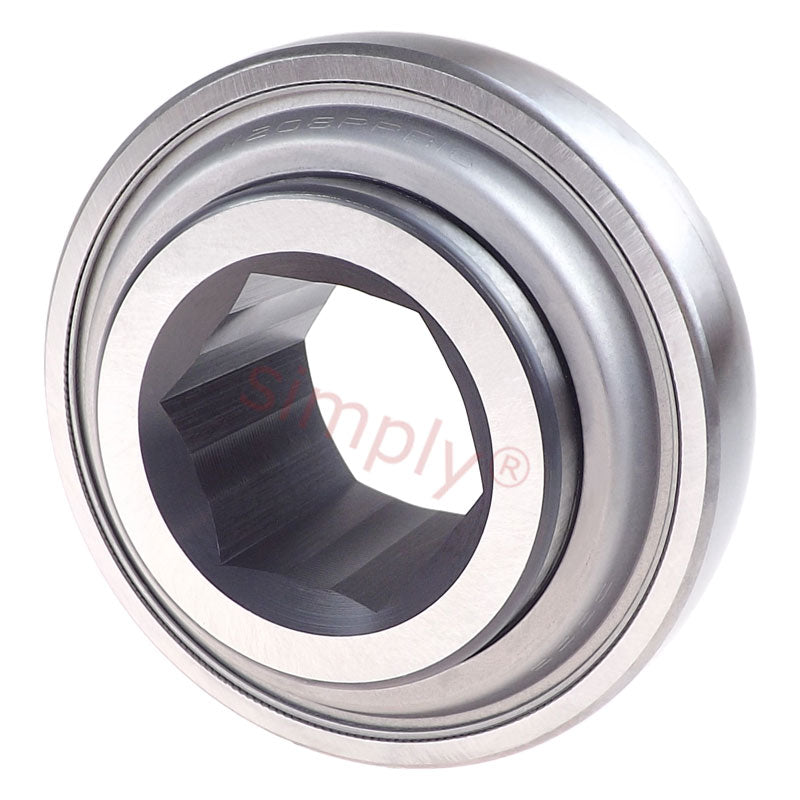

Major Brand W208PPB16 Feederhouse Hex Bore Bearing 1.25x3.1496x1.4374 inch

Combine Bearings
Application conditions and environment: A combine has several different bearing positions, each with similar conditions but having unique challenges;

• Dry, dust-filled environment; several positions have direct crop contact
• Medium to high speed (500 - 2000 min-1)
• Crop wrap and abrasive wear of bearing components
• Shock loads can be common

• Full range of stamped steel and cast iron housings
• Common use of set screws, eccentric lock collars or hex bore bearings

• High contamination feature package with seals matched to the application

• PEER bearing solutions are interchangeable with industry standard designs
• PEER offers one of the industries largest range of high performance combine bearings

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:

PEER - High Quality

Inside Diameter:

31.77mm = 1.251 inch

Outside Diameter:

80mm = 3.149 inch

Width:

36.53mm = 1.437 (1-7/16) inch
