SKU: W36-EU

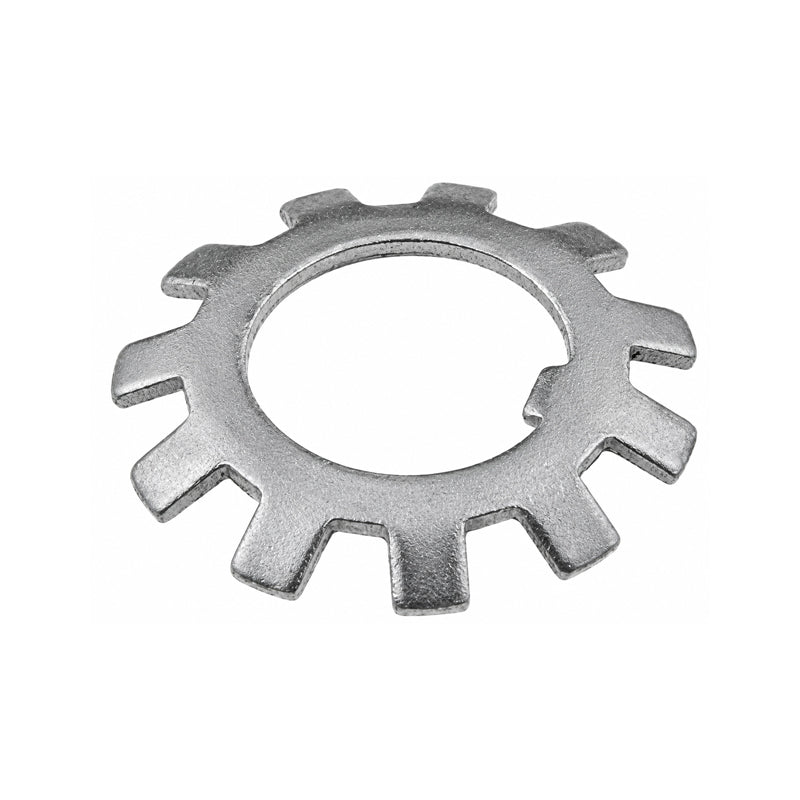

Premier Budget W36 Imperial Locking Tab Washer 7.171x9.438x0.146 inch
Premier Budget W36 Imperial Locking Tab Washer 7.171x9.438x0.146 inch
Regular price
CHF 24.87
ex VAT
Regular price
Sale price
CHF 24.87
ex VAT
In stock
Price Break
10+
CHF 22.13
19+
CHF 20.89
29+
CHF 20.64
39+
CHF 20.39
49+
CHF 20.14
74+
CHF 19.90
99+
CHF 18.65
199+
CHF 18.40
249+
CHF 18.16
499+
CHF 17.91
999+
CHF 17.41
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 182.14mm = 7.171 inch
- Outside Diameter:
- 239.73mm = 9.438 inch
- Width:
- 3.71mm = 0.146 inch
Technical
Technical
| d | 7.171 inch |
|---|---|
| d<sub>1</sub> | 8.405 inch |
| d<sub>2</sub> | 9.438 inch |
| B | 0.146 inch |
| f | 0.715 inch |
| M | 6.91 inch |
| V | 0.313 inch |
| Mass | 0.4491 kg |
