SKU: W38-EU

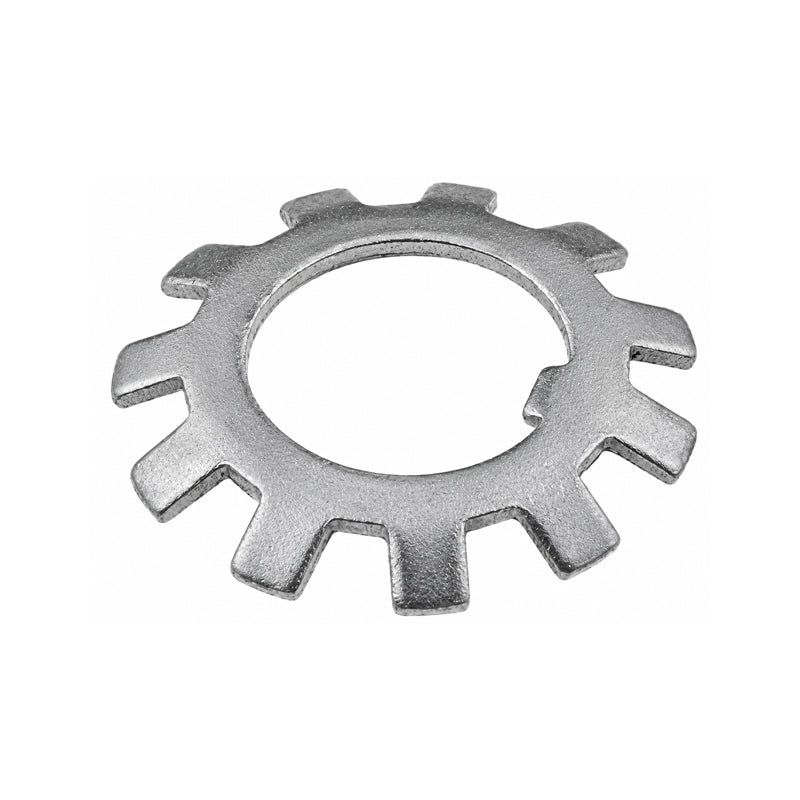

Premier Budget W38 Imperial Locking Tab Washer 7.577x9.875x0.146 inch
Premier Budget W38 Imperial Locking Tab Washer 7.577x9.875x0.146 inch
Regular price
CHF 36.52
ex VAT
Regular price
Sale price
CHF 36.52
ex VAT
In stock
Price Break
10+
CHF 32.50
19+
CHF 30.68
29+
CHF 30.31
39+
CHF 29.95
49+
CHF 29.58
74+
CHF 29.22
99+
CHF 27.39
199+
CHF 27.02
249+
CHF 26.66
499+
CHF 26.29
999+
CHF 25.56
Couldn't load pickup availability
Description
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. These lock washers are used with lock nuts of the N and AN series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable.
- Brand / Quality:
- Premier Budget - Good Quality
- Inside Diameter:
- 192.46mm = 7.577 inch
- Outside Diameter:
- 250.83mm = 9.875 inch
- Width:
- 3.71mm = 0.146 inch
Technical
Technical
| d | 7.577 inch |
|---|---|
| d<sub>1</sub> | 8.811 inch |
| d<sub>2</sub> | 9.875 inch |
| B | 0.146 inch |
| f | 0.715 inch |
| M | 7.316 inch |
| V | 0.313 inch |
| Mass | 0.4717 kg |
