SKU: W6007-2Z-SKF

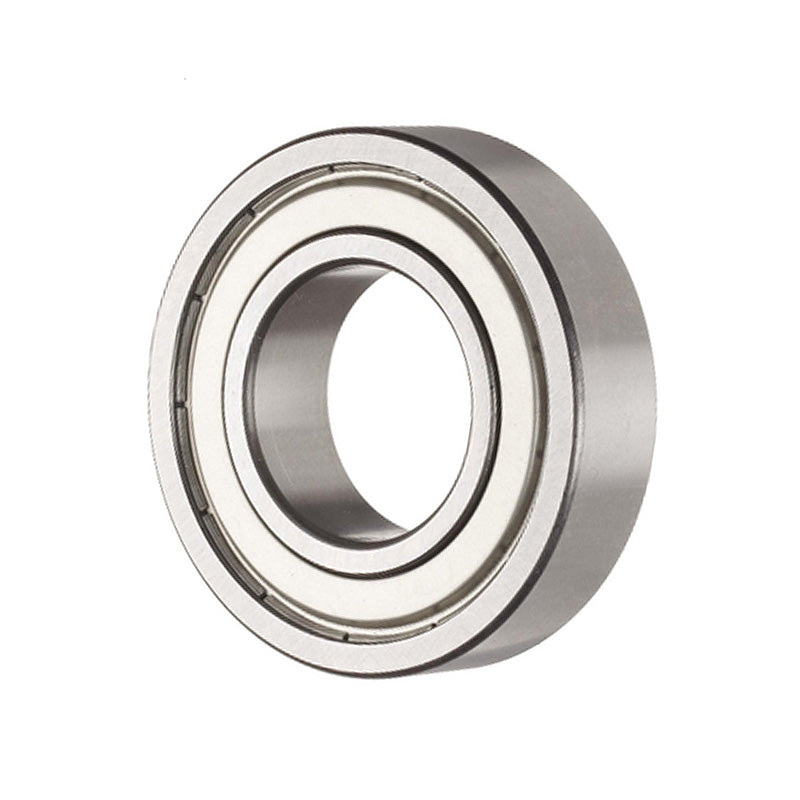

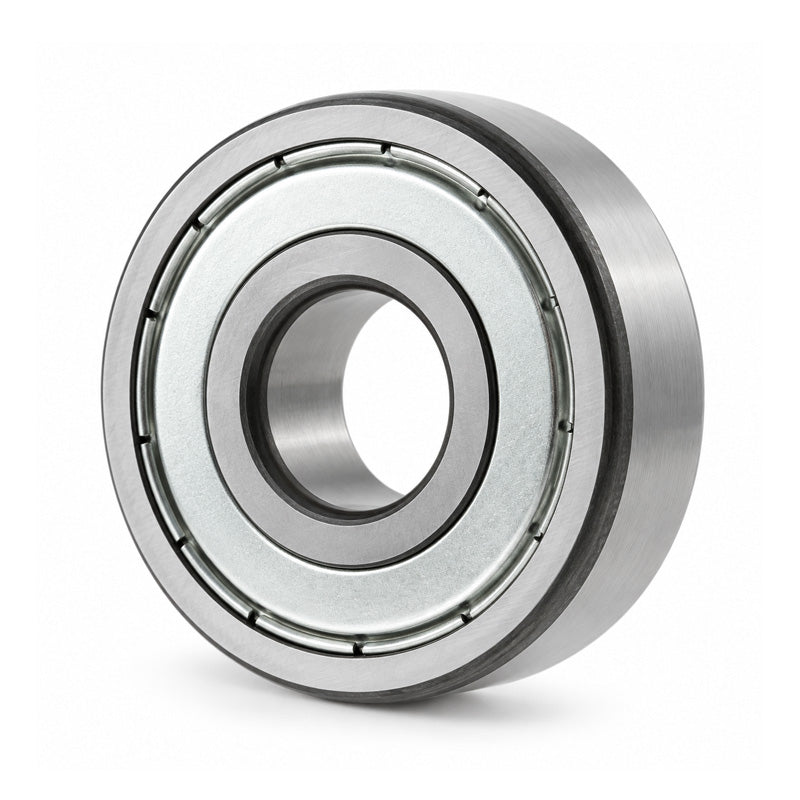

SKF W60072Z Stainless Steel Metal Shielded Deep Groove Ball Bearing 35x62x14mm
SKF W60072Z Stainless Steel Metal Shielded Deep Groove Ball Bearing 35x62x14mm
Regular price
CHF 125.00
ex VAT
Regular price
Sale price
CHF 125.00
ex VAT
Equivalent to: W6007ZZ
In stock
Price Break
10+
CHF 99.20
19+
CHF 93.63
29+
CHF 92.51
39+
CHF 91.40
49+
CHF 90.28
74+
CHF 89.17
99+
CHF 83.60
199+
CHF 82.48
249+
CHF 81.37
499+
CHF 80.25
999+
CHF 78.02
Description
Description
| SKF stainless steel deep groove ball bearings are specially designed to resist corrosion. They are ideally suited for application in the food industry and anywhere that requires a bearing which is both hygienic and has a high resilience to water. These single row deep groove ball bearings have the same deep raceway grooves and close conformity between raceways and balls as standard deep groove ball bearings. They can carry axial loads acting in both directions in addition to radial loads, even at high speeds. SKF stainless steel deep groove ball bearings have the same running properties as conventional steel deep groove ball bearings, but have a lower load carrying capacity.
The bearings are available in open and sealed designs for shaft diameters from 1 to 50 mm. Benefits: Food safe, water and corrosion resilient, available up to 50mm bore Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: W6007ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 10 kN |
| Fatigue load limit Pu | 0.44 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.16 kg |
| d1 | 44mm |
| D1 | 57.1mm |
| r1r2 min | 1mm |
| da min | 39.6mm |
| Da max | 57.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
