SKU: WH12-SKF

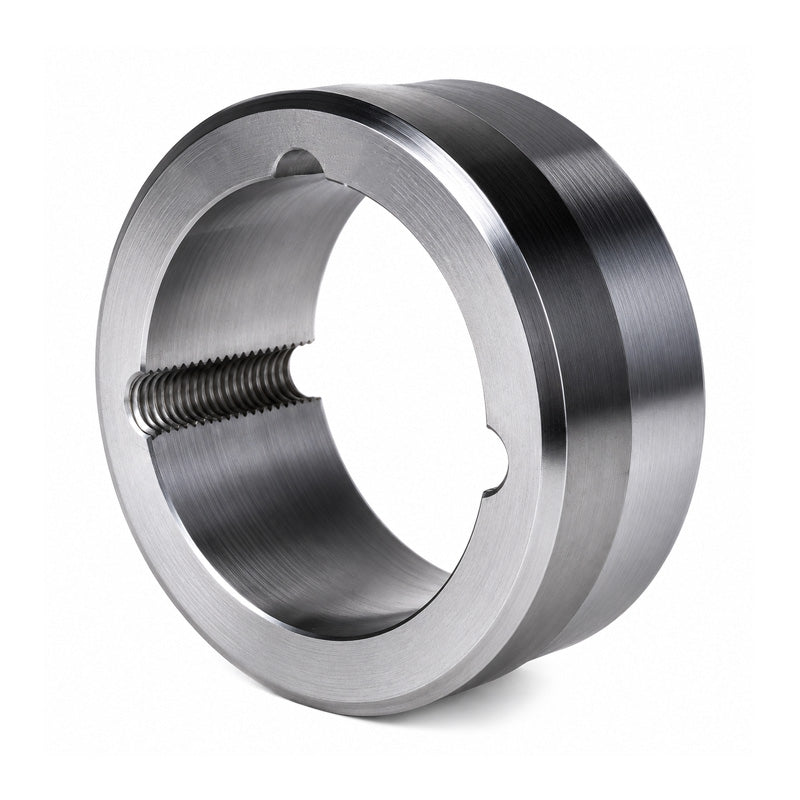

SKF WH12 Weld on Hub Shaft Fixing with Tapered Bore
SKF WH12 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 42.40
ex VAT
Regular price
Sale price
CHF 42.40
ex VAT
In stock
Price Break
10+
CHF 37.74
19+
CHF 35.62
29+
CHF 35.19
39+
CHF 34.77
49+
CHF 34.34
74+
CHF 33.92
99+
CHF 31.80
199+
CHF 31.38
249+
CHF 30.95
499+
CHF 30.53
999+
CHF 29.68
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1210
- Outside Diameter:
- 70mm
- Width:
- 25mm
Technical
Technical
| Hub Reference | WH12 |
|---|---|
| Bush Number | 1210 |
| A | 70mm |
| B | 65mm |
| C | 64.5mm |
| D | 25mm |
| E | 9mm |
| F | 10mm |
