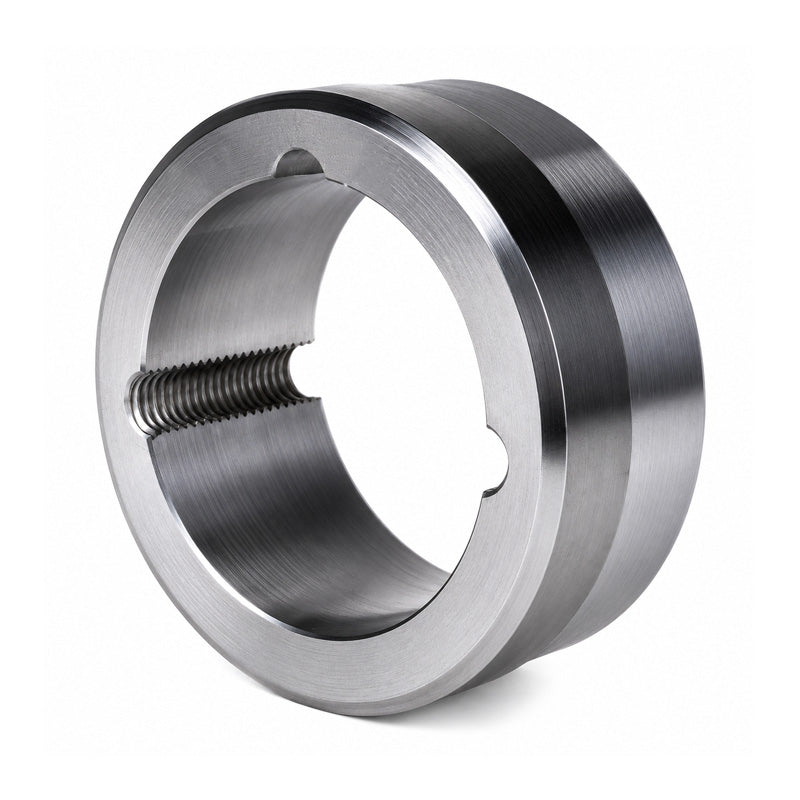

SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 47.30
ex VAT
Regular price
Sale price
CHF 47.30
ex VAT
In stock
Price Break
10+
CHF 42.10
19+
CHF 39.73
29+
CHF 39.26
39+
CHF 38.79
49+
CHF 38.31
74+
CHF 37.84
99+
CHF 35.48
199+
CHF 35.00
249+
CHF 34.53
499+
CHF 34.06
999+
CHF 33.11
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 145mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WHG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 145mm |
| B | 140mm |
| C | 139.5mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
