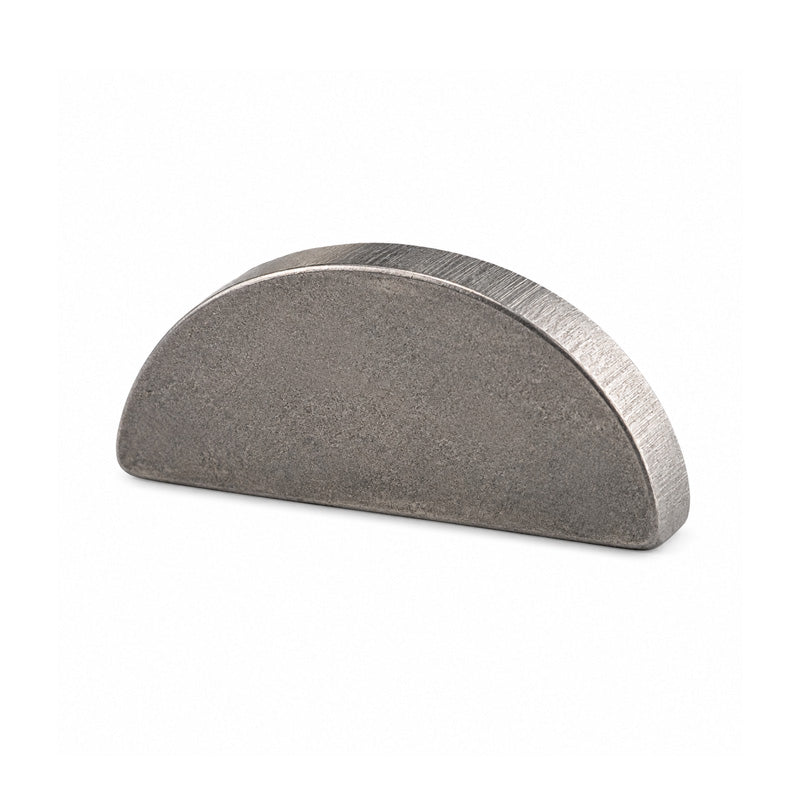

Imperial Carbon Steel BS46 Woodruff Key 3/8x1-1/2x7/64 inch
Imperial Carbon Steel BS46 Woodruff Key 3/8x1-1/2x7/64 inch
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
5+
CHF 8.76
10+
CHF 8.41
20+
CHF 8.23
50+
CHF 7.97
100+
CHF 7.79
500+
CHF 7.35
1000+
CHF 6.20
Description
Description
Carbon Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from carbon steel (DIN6888 or C45+C).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Height:
- Approx 0.6385 inch
- Length:
- Approx 1.479 inch
- Material:
- Carbon Steel
Technical
Technical
| Nominal Diameter A | 1-1/2 inch |
|---|---|
| Actual Length L (min) | 1.474 inch |
| Actual Length L (max) | 1.484 inch |
| Width C | 3/8 inch |
| Height B (min) | 0.636 inch |
| Height B (max) | 0.641 inch |
| Distance Below Center | 7/64 inch |
| Material | Carbon Steel C45+C / BS46 |
| Weight per key (Approx) | 0.001 kg |
