SKU: WKSS.2X2.6X7MM

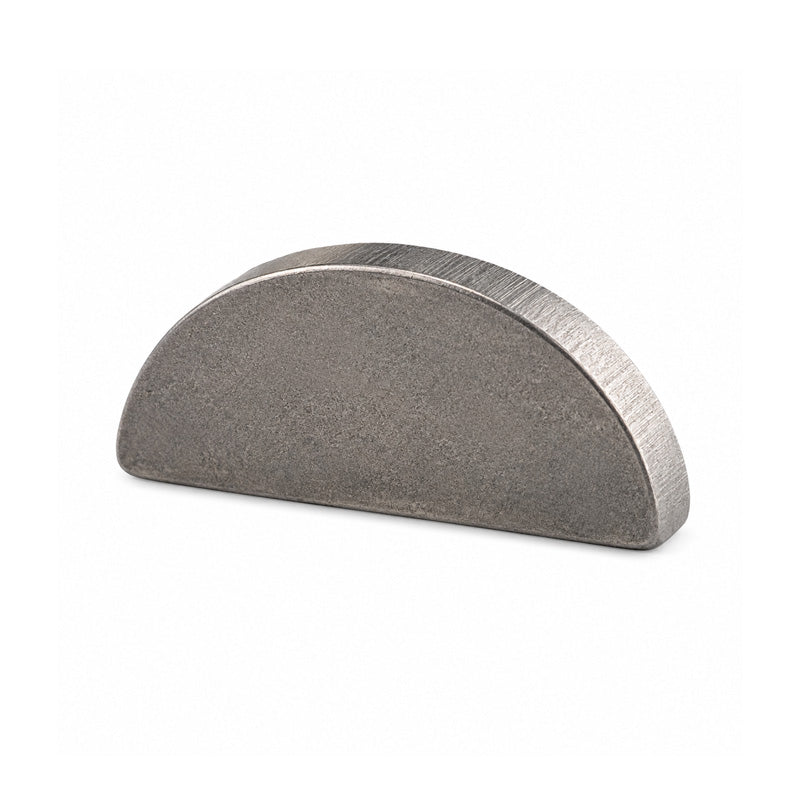

Metric Stainless Steel A4-316 Woodruff Key 2x2.6x7mm
Metric Stainless Steel A4-316 Woodruff Key 2x2.6x7mm
Regular price
CHF 4.55
ex VAT
Regular price
Sale price
CHF 4.55
ex VAT
In stock
Price Break
5+
CHF 3.19
10+
CHF 2.73
20+
CHF 2.50
50+
CHF 2.28
100+
CHF 1.82
500+
CHF 1.59
1000+
CHF 1.37
Couldn't load pickup availability
Description
Description
Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 7mm
- Width:
- 2mm
- Height:
- 2.6mm
- Length:
- 6.75mm
- Material:
- Stainless Steel
Technical
Technical
| Width C | 2mm (Tol -0.025mm) |
|---|---|
| Height B | 2.6mm (Tol -0.1mm) |
| Nominal Diameter A | 7mm (Tol -0.1mm) |
| Actual Length L | 6.75mm |
| Material | Stainless Steel A4-316 / A4-316 |
| Weight per key (Approx) | 0.0002912 kg |
