SKU: WKSS.3/32X1/2IN

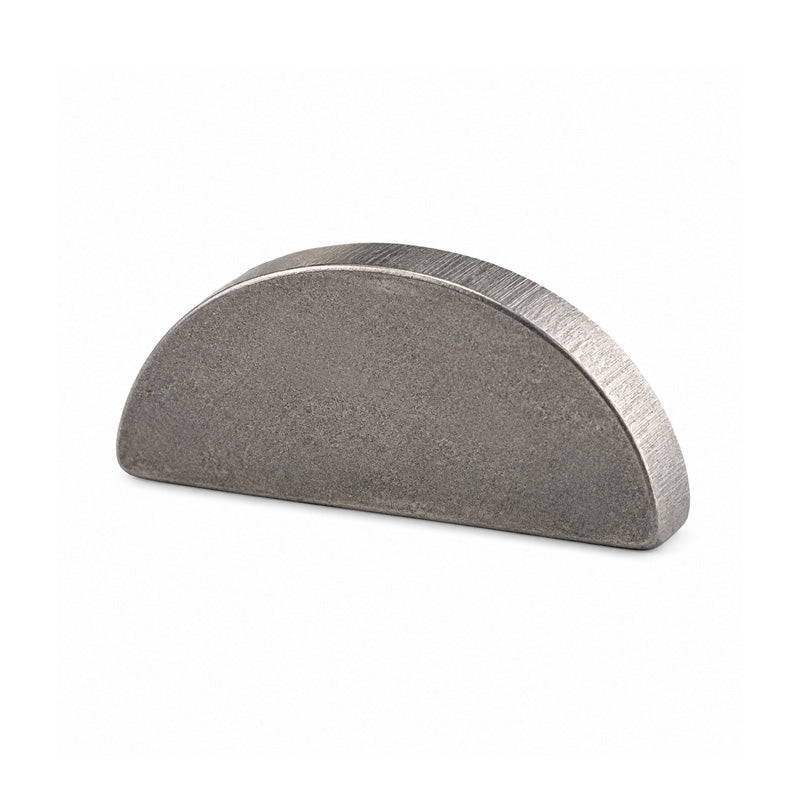

Imperial Stainless Steel A4-316 Woodruff Key 3/32x1/2x3/64 inch
Imperial Stainless Steel A4-316 Woodruff Key 3/32x1/2x3/64 inch
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
In stock
Price Break
5+
CHF 3.18
10+
CHF 2.72
20+
CHF 2.50
50+
CHF 2.27
100+
CHF 1.82
500+
CHF 1.59
1000+
CHF 1.36
Description
Description
Stainless Steel Woodruff Key Steels: These semicircular keys are to be installed into circular segment keyways. The benefit of using this style of key is the elimination of milling near shaft shoulders. Also, to remove woodruff keys it takes just a simple hammer blow to dislodge. These keys are manufactured from stainless steel (A4-316).
Benefits: Cost-effective, quick removal, quick installation
- Brand / Quality:
- Simply Key Steel - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 2.38mm = 0.094 (3/32) inch
- Height:
- Approx 0.2005 inch
- Length:
- Approx 0.486 inch
- Material:
- Stainless Steel
Technical
Technical
| Nominal Diameter A | 1/2 inch |
|---|---|
| Actual Length L (min) | 0.481 inch |
| Actual Length L (max) | 0.491 inch |
| Width C | 3/32 inch |
| Height B (min) | 0.198 inch |
| Height B (max) | 0.203 inch |
| Distance Below Center | 3/64 inch |
| Material | Stainless Steel A4-316 / A4-316 |
| Weight per key (Approx) | 0.001 kg |
