SKU: WMB.808570

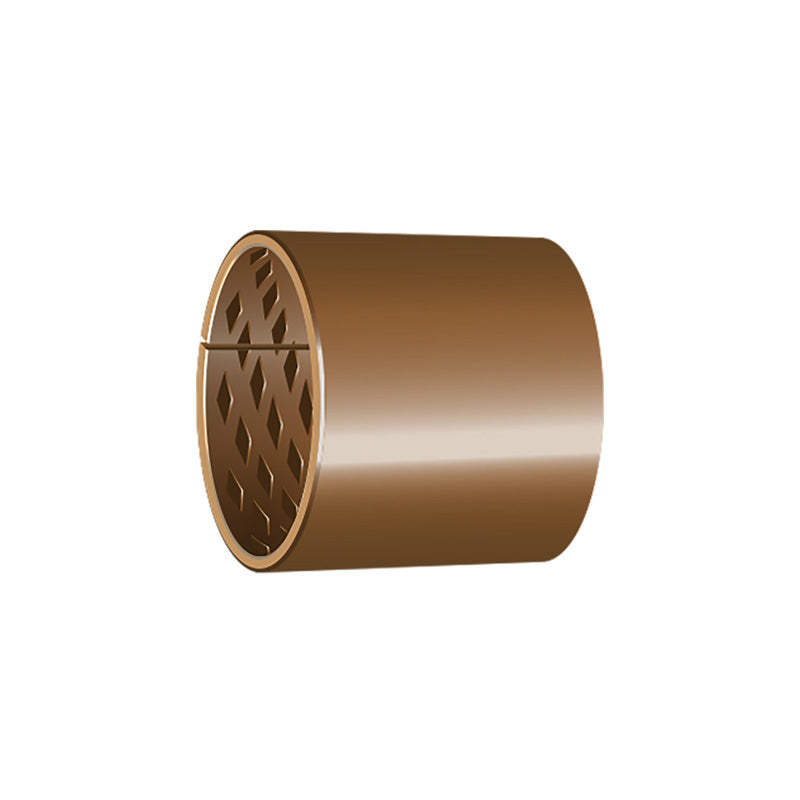

WMB808570 Metric Wrapped Bronze Plain Bush 80x85x70mm
WMB808570 Metric Wrapped Bronze Plain Bush 80x85x70mm
Regular price
CHF 44.73
ex VAT
Regular price
Sale price
CHF 44.73
ex VAT
In stock
Price Break
5+
CHF 44.28
10+
CHF 42.49
20+
CHF 41.60
50+
CHF 40.26
100+
CHF 39.36
500+
CHF 37.13
1000+
CHF 31.31
Couldn't load pickup availability
Description
Description
Wrapped Bronze Plain Bushes These bushes are wrapped in homogenous bronze. These bushes are capable of high levels of thermal conductivity, high load capacities and also they have chemical resistance. Due to the slit along the length of the bush, they are very easy to install. Also, the through holes allow for easy lubrication.
Benefits: Easy installation, high load capacity, excellent wear resistance with lower friction.
- Brand / Quality:
- Simply Wrapped Bronze Bushes - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 85mm
- Length:
- 70mm
Technical
Technical
| Inside Diameter (d) | 80mm |
|---|---|
| Outside Diameter (D) | 85mm |
| Length (B) | 70mm |
| Length Min | 69.75mm |
| Length Max | 70.25mm |
| PV | 2.8 max N/mm squared x m/s |
| Dynamic Load | 40 max N/mm squared |
| Intermittent Temperature | 130 max Deg C |
| Thermal Conductivity | 60 W/mk |
| Hardness | 90-120 HB |
| Yield Point | 250 min N/mm squared |
| Static Load | 120 max N/mm squared |
| Sliding speed - With Grease | 2.5 max m/s |
| Operating Temperature | -100 to 200 Deg C |
| Coefficient of Friction | 0.08 to 0.25 |
| Tensile Strength | 450 min N/mm squared |
| Elongation | 40 Percent |
