SKU: WMG30-3-SKF
SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 61.96
ex VAT
Regular price
Sale price
CHF 61.96
ex VAT
In stock
Price Break
10+
CHF 55.14
19+
CHF 52.05
29+
CHF 51.43
39+
CHF 50.81
49+
CHF 50.19
74+
CHF 49.57
99+
CHF 46.47
199+
CHF 45.85
249+
CHF 45.23
499+
CHF 44.61
999+
CHF 43.37
Couldn't load pickup availability
Description
Description

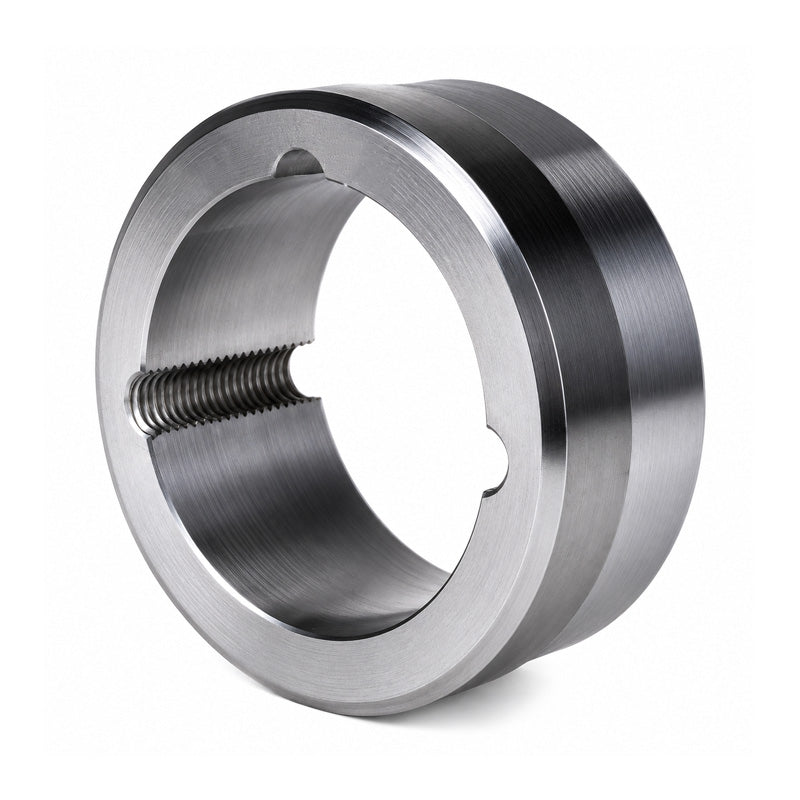

Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3030
- Outside Diameter:
- 152mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WMG30-3 |
|---|---|
| Bush Number | 3030 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 76mm |
| E | 25mm |
| F | 19mm |
| F1 | 25mm |
| X | 25mm |
