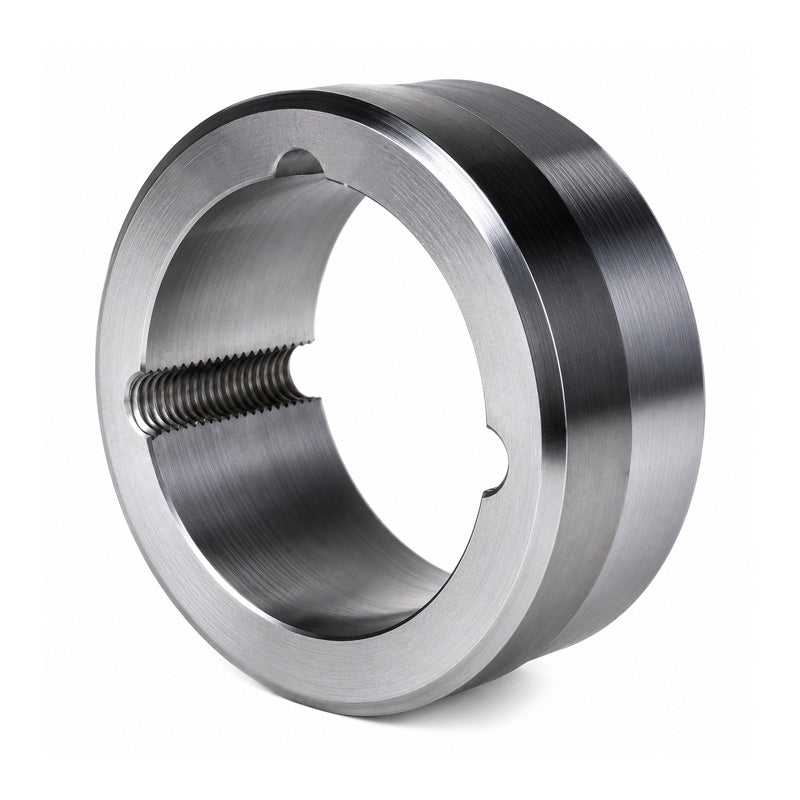

SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 98.78
ex VAT
Regular price
Sale price
CHF 98.78
ex VAT
In stock
Price Break
10+
CHF 87.91
19+
CHF 82.98
29+
CHF 81.99
39+
CHF 81.00
49+
CHF 80.01
74+
CHF 79.02
99+
CHF 74.09
199+
CHF 73.10
249+
CHF 72.11
499+
CHF 71.12
999+
CHF 69.15
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3535
- Outside Diameter:
- 184mm
- Width:
- 89mm
Technical
Technical
| Hub Reference | WMG35 |
|---|---|
| Bush Number | 3535 |
| A | 184mm |
| B | 155mm |
| C | 151mm |
| D | 89mm |
| E | 32mm |
| F | 25mm |
| F1 | 30mm |
| X | 30mm |
