SKU: WMG40-SKF

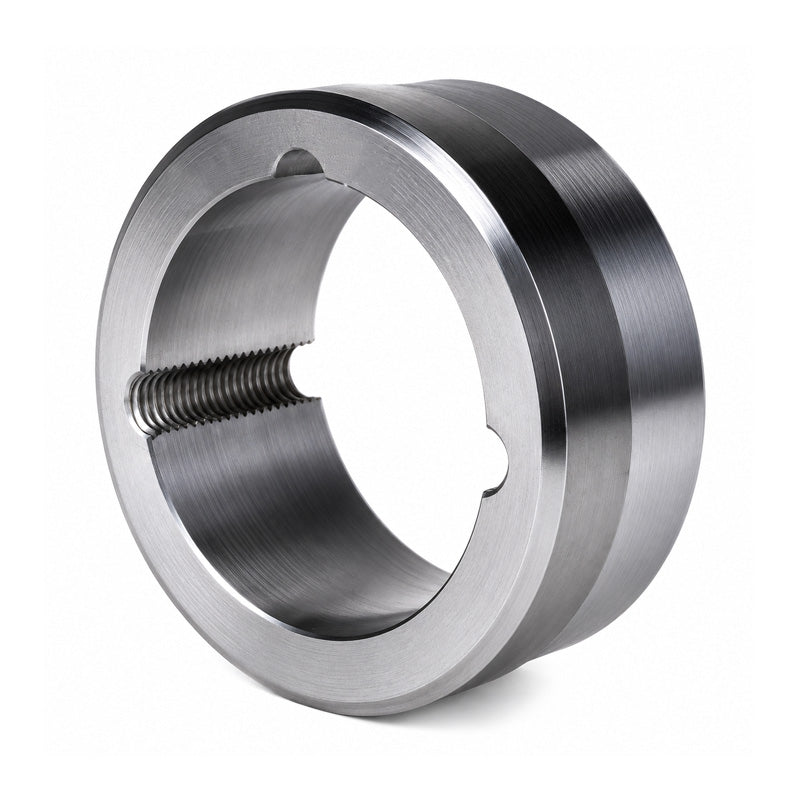

SKF WMG40 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG40 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 146.13
ex VAT
Regular price
Sale price
CHF 146.13
ex VAT
In stock
Price Break
10+
CHF 130.06
19+
CHF 122.75
29+
CHF 121.29
39+
CHF 119.83
49+
CHF 118.37
74+
CHF 116.90
99+
CHF 109.60
199+
CHF 108.14
249+
CHF 106.67
499+
CHF 105.21
999+
CHF 102.29
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 225mm
- Width:
- 102mm
Technical
Technical
| Hub Reference | WMG40 |
|---|---|
| Bush Number | 4040 |
| A | 225mm |
| B | 195mm |
| C | 187mm |
| D | 102mm |
| E | 32mm |
| F | 32mm |
| F1 | 34mm |
| X | 34mm |
