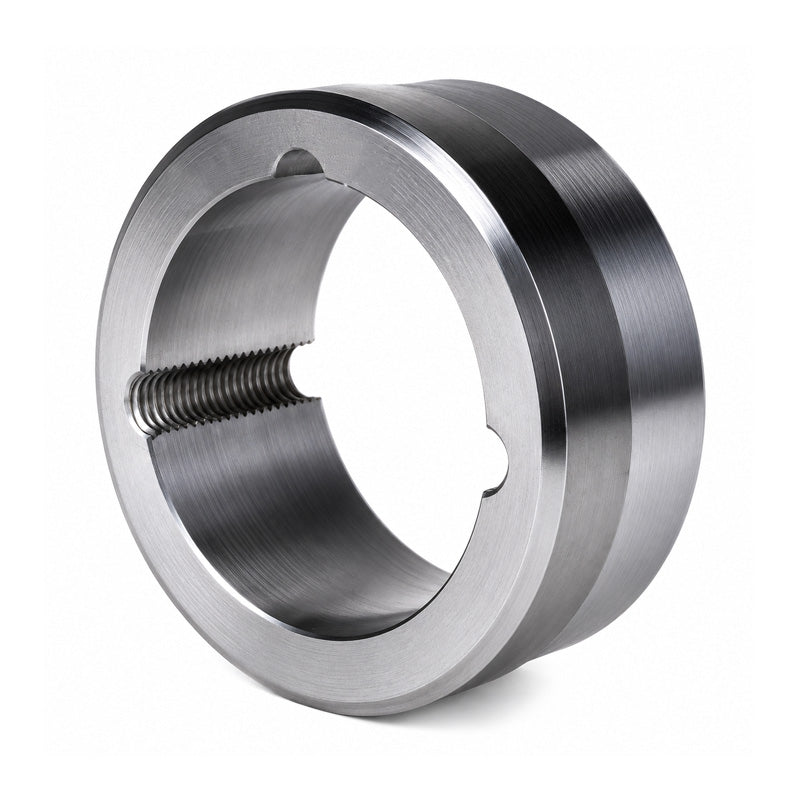

SKF WMG50 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG50 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
CHF 271.25
ex VAT
Regular price
Sale price
CHF 271.25
ex VAT
In stock
Price Break
10+
CHF 241.41
19+
CHF 227.85
29+
CHF 225.14
39+
CHF 222.43
49+
CHF 219.71
74+
CHF 217.00
99+
CHF 203.44
199+
CHF 200.73
249+
CHF 198.01
499+
CHF 195.30
999+
CHF 189.88
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 5050
- Outside Diameter:
- 276mm
- Width:
- 127mm
Technical
Technical
| Hub Reference | WMG50 |
|---|---|
| Bush Number | 5050 |
| A | 276mm |
| B | 242mm |
| C | 228mm |
| D | 127mm |
| E | 38mm |
| F | 38mm |
| F1 | 42mm |
| X | 42mm |
