SKU: WMO-6075-50
WMO607550 Plain Oilless Bronze Bush 60x75x50mm - Allow 2-3 Days
WMO607550 Plain Oilless Bronze Bush 60x75x50mm - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
Equivalent to: WMO607550
In stock
Price Break
3+
CHF 65.84
5+
CHF 63.18
9+
CHF 61.85
19+
CHF 59.86
49+
CHF 58.53
74+
CHF 55.20
99+
CHF 46.56
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description

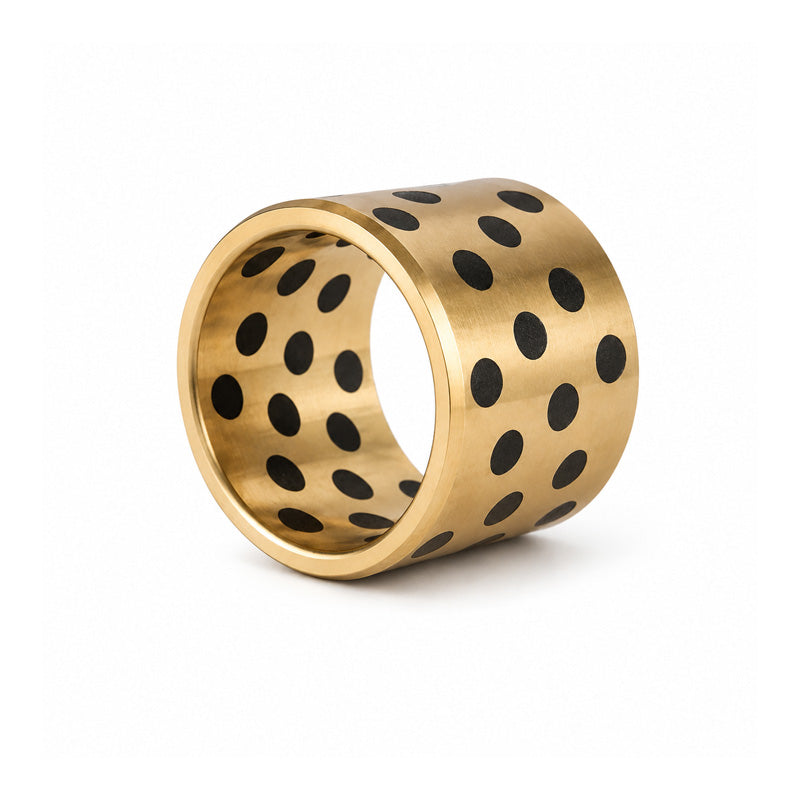

Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO607550
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 75mm
- Length:
- 50mm
- Item Type:
- Plain
Technical
Technical
| d | 60mm |
|---|---|
| D | 75mm |
| L | 50mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 79.577 rpm |
| Max load | 30581.04 kg |
| Housing Tolerance | H7 |
