SKU: WMOF-2030-15

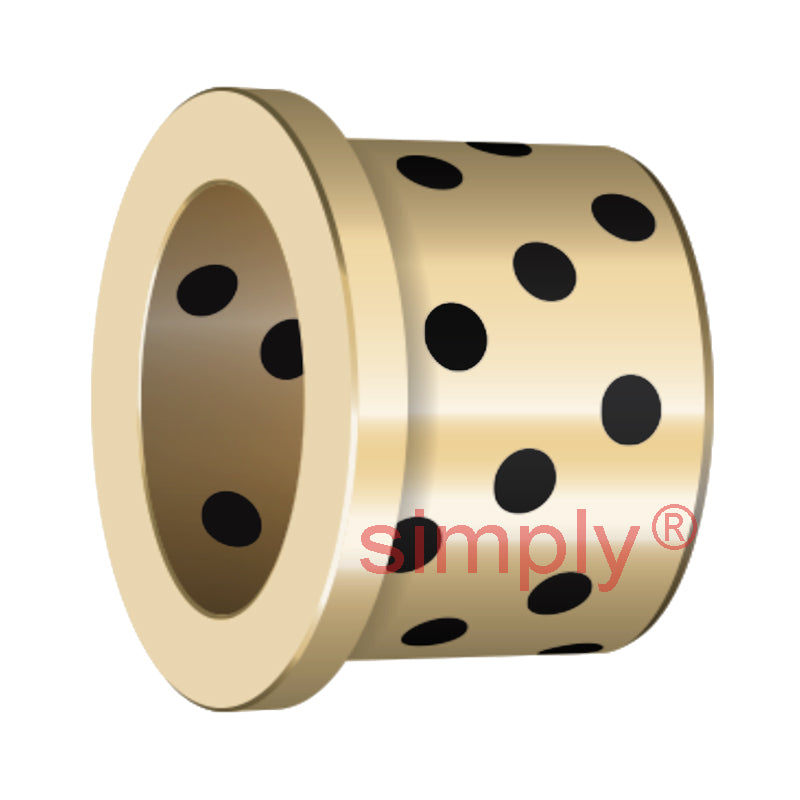

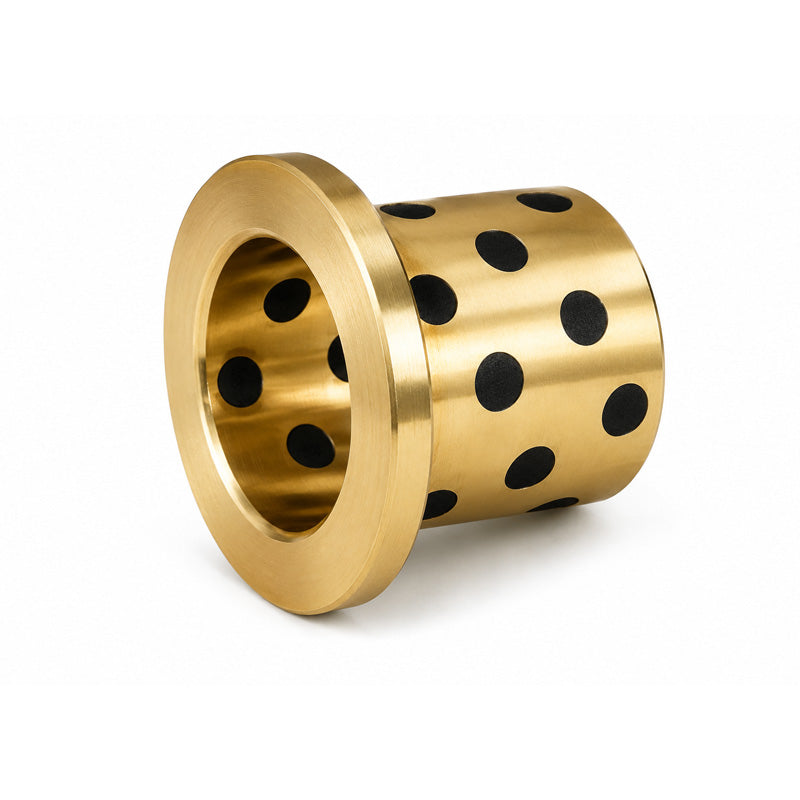

WMOF203015 Flanged Oilless Bronze Bush 20x30x15mm
WMOF203015 Flanged Oilless Bronze Bush 20x30x15mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: WMOF203015
In stock
Price Break
3+
CHF 18.68
5+
CHF 17.63
9+
CHF 17.42
19+
CHF 17.21
49+
CHF 17.00
74+
CHF 16.79
99+
CHF 15.74
199+
CHF 15.53
249+
CHF 15.32
499+
CHF 15.11
999+
CHF 14.69
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF203015
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Length:
- 15mm
- Item Type:
- Flanged
Technical
Technical
| d | 20mm |
|---|---|
| D | 30mm |
| L | 15mm |
| F | 40mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 238.732 rpm |
| Max load | 3058.104 kg |
| Housing Tolerance | H7 |
