SKU: WMOF-2535-40

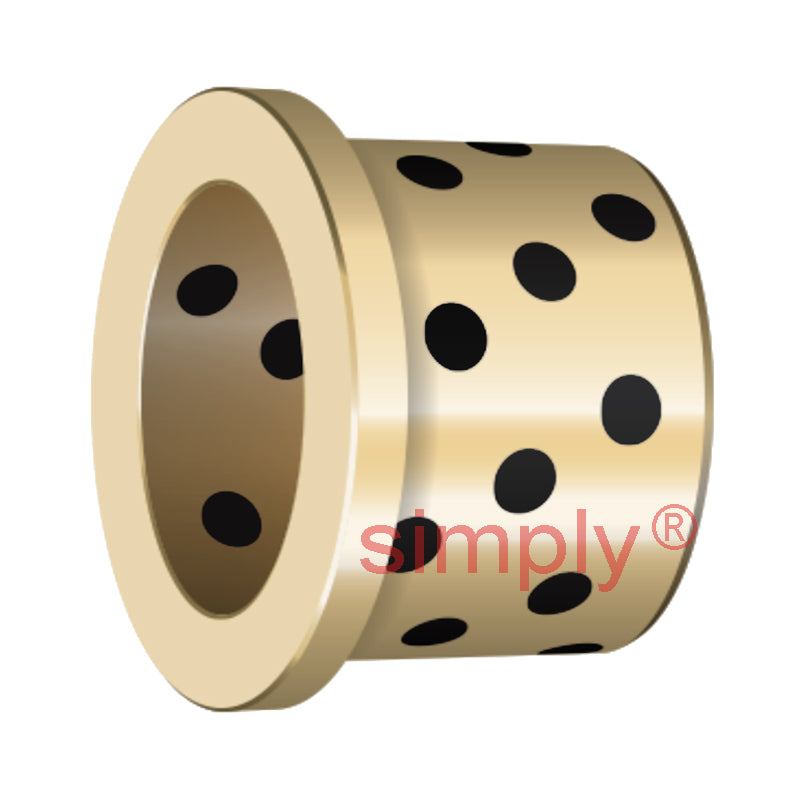

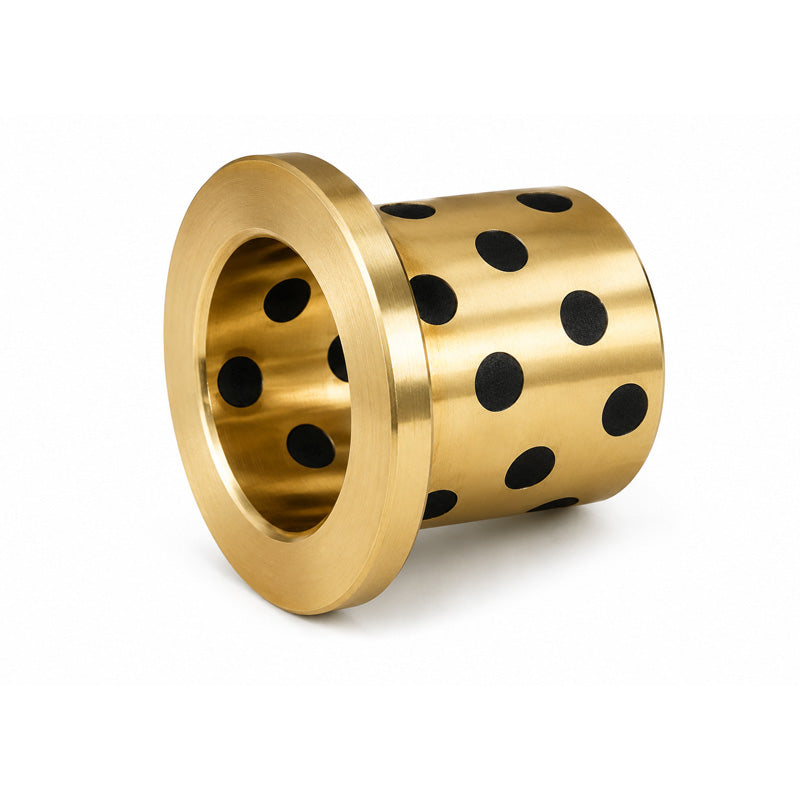

WMOF253540 Flanged Oilless Bronze Bush 25x35x40mm
WMOF253540 Flanged Oilless Bronze Bush 25x35x40mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: WMOF253540
In stock
Price Break
3+
CHF 18.92
5+
CHF 17.86
9+
CHF 17.64
19+
CHF 17.43
49+
CHF 17.22
74+
CHF 17.01
99+
CHF 15.94
199+
CHF 15.73
249+
CHF 15.52
499+
CHF 15.31
999+
CHF 14.88
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF253540
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 35mm
- Length:
- 40mm
- Item Type:
- Flanged
Technical
Technical
| d | 25mm |
|---|---|
| D | 35mm |
| L | 40mm |
| F | 45mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 190.986 rpm |
| Max load | 10193.68 kg |
| Housing Tolerance | H7 |
