SKU: WMOF-4555-30

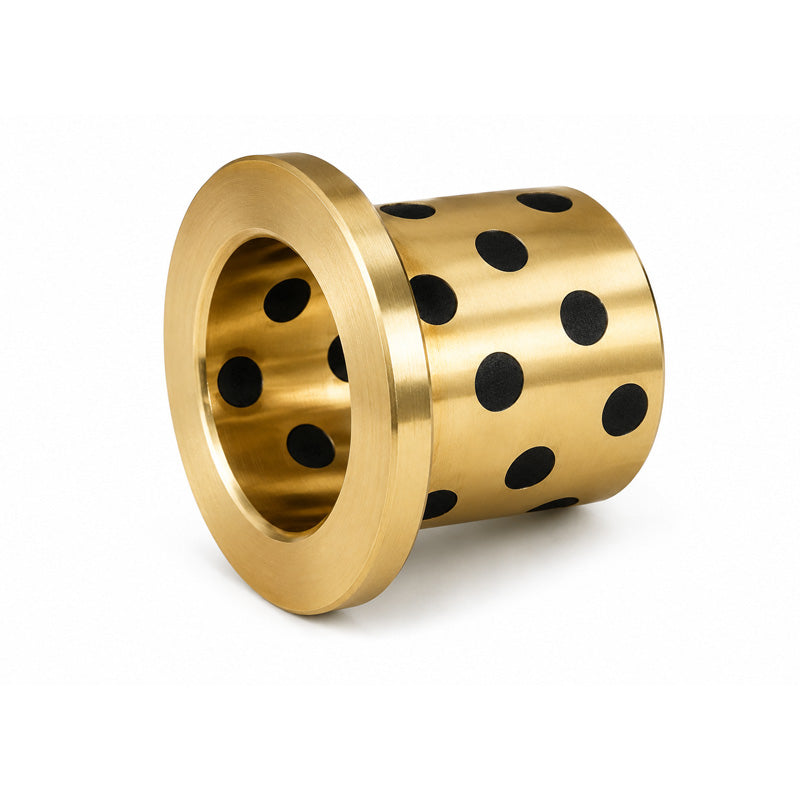

WMOF455530 Flanged Oilless Bronze Bush 45x55x30mm - Allow 2-3 Days
WMOF455530 Flanged Oilless Bronze Bush 45x55x30mm - Allow 2-3 Days
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
Equivalent to: WMOF455530
In stock
Price Break
3+
CHF 39.48
5+
CHF 37.89
9+
CHF 37.09
19+
CHF 35.89
49+
CHF 35.09
74+
CHF 33.10
99+
CHF 27.92
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF455530
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 55mm
- Length:
- 30mm
- Item Type:
- Flanged
Technical
Technical
| d | 45mm |
|---|---|
| D | 55mm |
| L | 30mm |
| F | 70mm |
| L1 | 5mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 106.103 rpm |
| Max load | 13761.47 kg |
| Housing Tolerance | H7 |
