SKU: WMX.182025

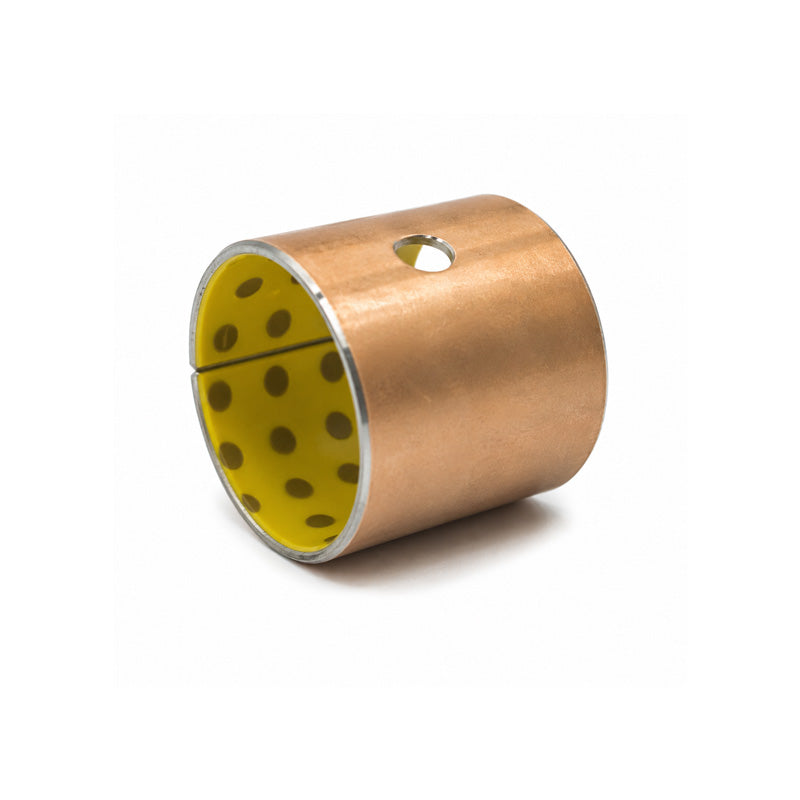

WMX182025 Metric Wrapped Acetal Lined Plain Bush 18x20x25mm
WMX182025 Metric Wrapped Acetal Lined Plain Bush 18x20x25mm
Regular price
CHF 2.00
ex VAT
Regular price
Sale price
CHF 2.00
ex VAT
In stock
Price Break
5+
CHF 0.67
10+
CHF 0.57
20+
CHF 0.52
50+
CHF 0.48
100+
CHF 0.38
500+
CHF 0.33
1000+
CHF 0.29
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 20mm
- Length:
- 25mm
Technical
Technical
| Inside Diameter (d) | 18mm |
|---|---|
| Outside Diameter (D) | 20mm |
| Length (B) | 25mm |
| Overall Length Tolerance | 24.75mm min to 25.25mm max |
| Recommended Housing Size Tolerance | 20mm min to 20.021mm max H7 |
| Shaft Diameter Tolerance | 17.973mm min to 18mm max |
| Inside Diameter when Fitted Tolerance | 18.04mm min to 18.131mm max |
| Inside Chamfers Tolerance | 0.1mm min to 0.5mm max |
| Outside Chamfers Tolerance | 0.2mm min to 1mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
