SKU: WS81111-MB

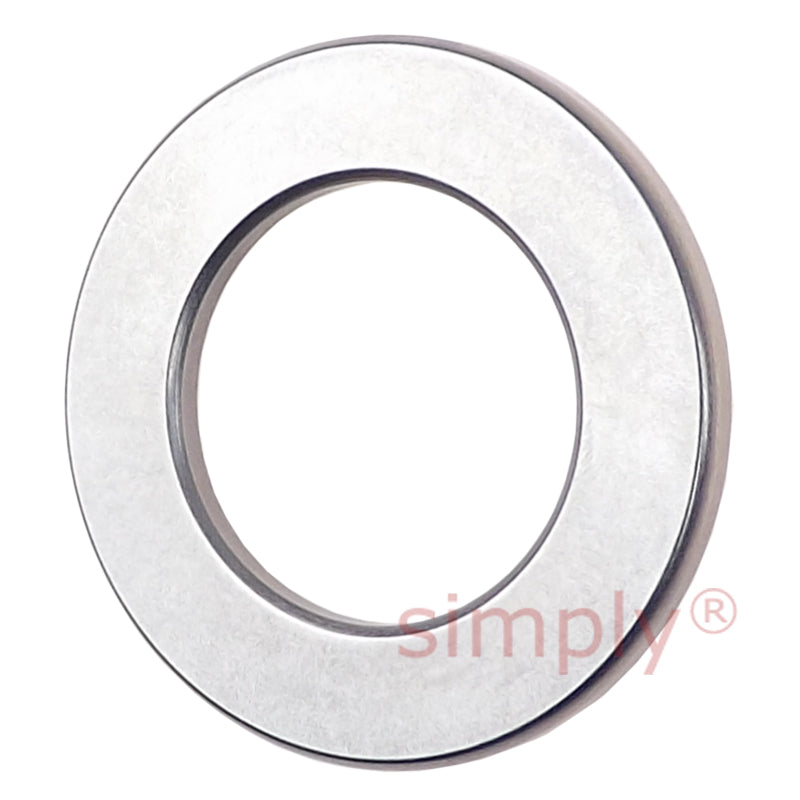

Major Brand WS81111 Shaft Washer Series WS 55x78x5mm

Name: Major Brand WS81111 Shaft Washer Series WS 55x78x5mm
Brand: Major Brand
SKU: WS81111-MB
Price: 32.42 CHF
Availability: InStock

CHF 32.42 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 28.85

19+ CHF 27.23

29+ CHF 26.91

39+ CHF 26.58

49+ CHF 26.26

74+ CHF 25.94

99+ CHF 24.32

199+ CHF 23.99

249+ CHF 23.67

499+ CHF 23.34

999+ CHF 22.69

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

WS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 78mm
Width:: 5mm

Technical

d	55mm
d1	78mm
D	78mm
D1	57mm
B	5mm
r1r2	0.6mm
Weight	88 g
