SKU: XFM-0304-05

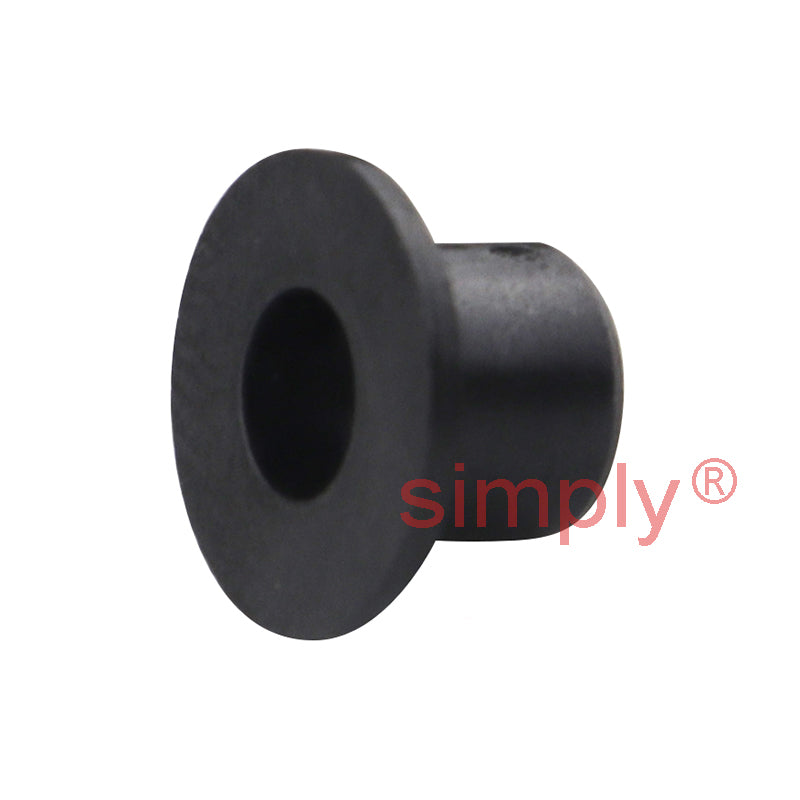

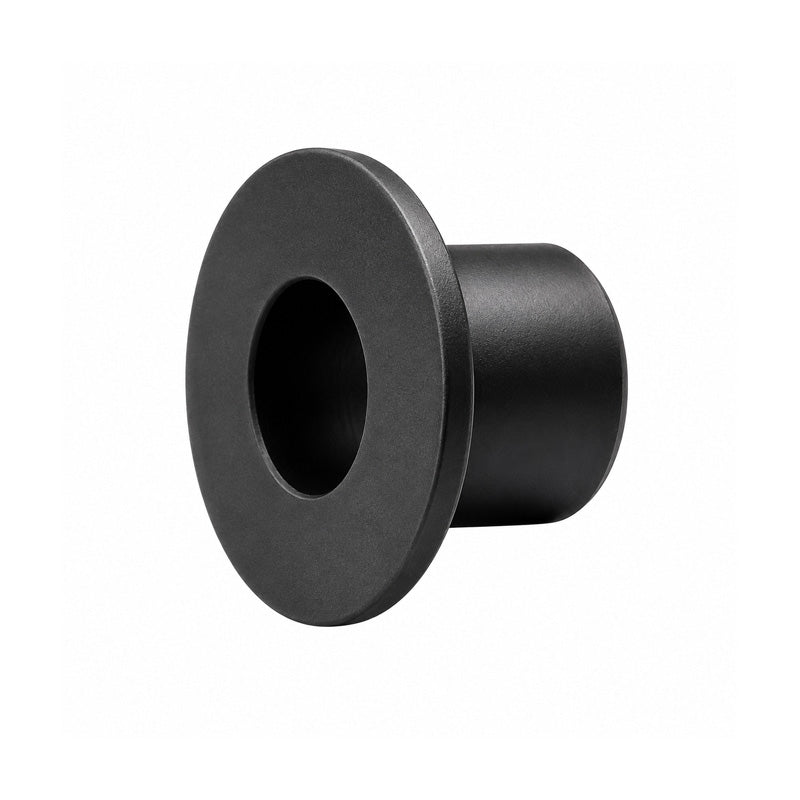

Igus XFM-0304-05 iglidur X Sleeve Bush with Flange 3x4.5x5mm
Igus XFM-0304-05 iglidur X Sleeve Bush with Flange 3x4.5x5mm
Regular price
CHF 7.50
ex VAT
Regular price
Sale price
CHF 7.50
ex VAT
In stock
Price Break
10+
CHF 6.68
19+
CHF 6.30
29+
CHF 6.23
39+
CHF 6.15
49+
CHF 6.08
74+
CHF 6.00
99+
CHF 5.63
199+
CHF 5.55
249+
CHF 5.48
499+
CHF 5.40
999+
CHF 5.25
Couldn't load pickup availability
Description
Description
Igus iglidur X Series Sleeve Bearing: These iglidur X sleeve bush bearings provide excellent resistantance to high temperatures, high speeds, high loads and also when used under water. Also, these bearings provide very low moisture absorption and universal chemical resistance. These bush bearings are suitable for temperatures between -100 deg C to +250 deg C and for short-term use -100 deg C to +315 deg C.
Benefits: Excellent resistance to high speeds, excellent resistance to high temperatures, very low moisture absorption.
Benefits: Excellent resistance to high speeds, excellent resistance to high temperatures, very low moisture absorption.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 4.5mm
- Width:
- 5mm

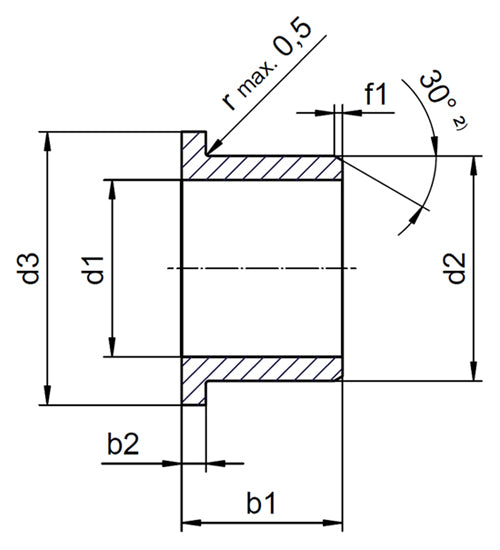

Technical
Technical
| d1 - Inside Diameter | 3mm |
|---|---|
| d2 - Outside Diameter | 4.5mm |
| d3 - Flange Diameter | 7.5mm |
| b1 - Overall Width | 5mm |
| b2 - Flange Width | 0.75mm |
| f1 - Bevel Length | 0.3mm |
| Bevel Angle | 30 deg |
