SKU: YAR204-012-2FW/VA228-SKF

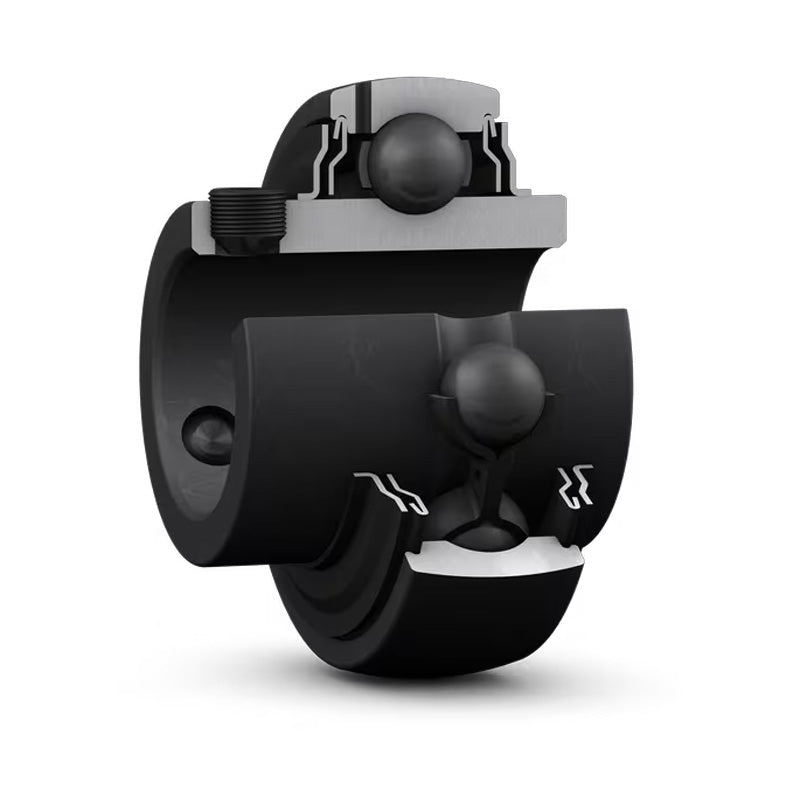

SKF YAR2040122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 3/4 inch shaft - Allow 2-3 Days
SKF YAR2040122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 3/4 inch shaft - Allow 2-3 Days
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
10+
CHF 98.72
19+
CHF 94.73
29+
CHF 92.74
39+
CHF 89.75
49+
CHF 87.75
74+
CHF 82.77
99+
CHF 69.80
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| B | 31mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.17 kg |
