SKU: YAR204-2RF/VE495-SKF

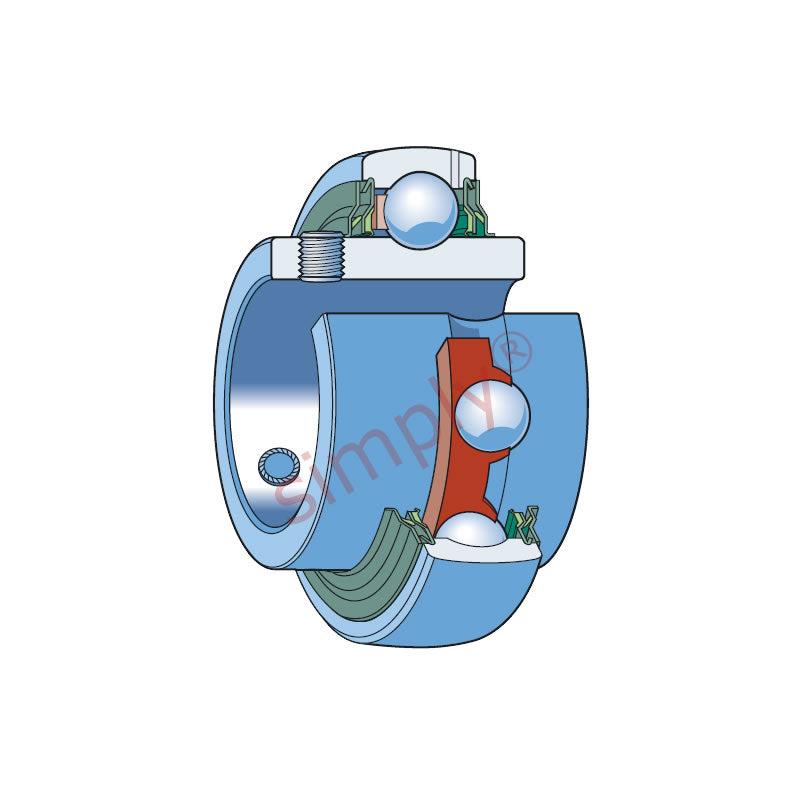

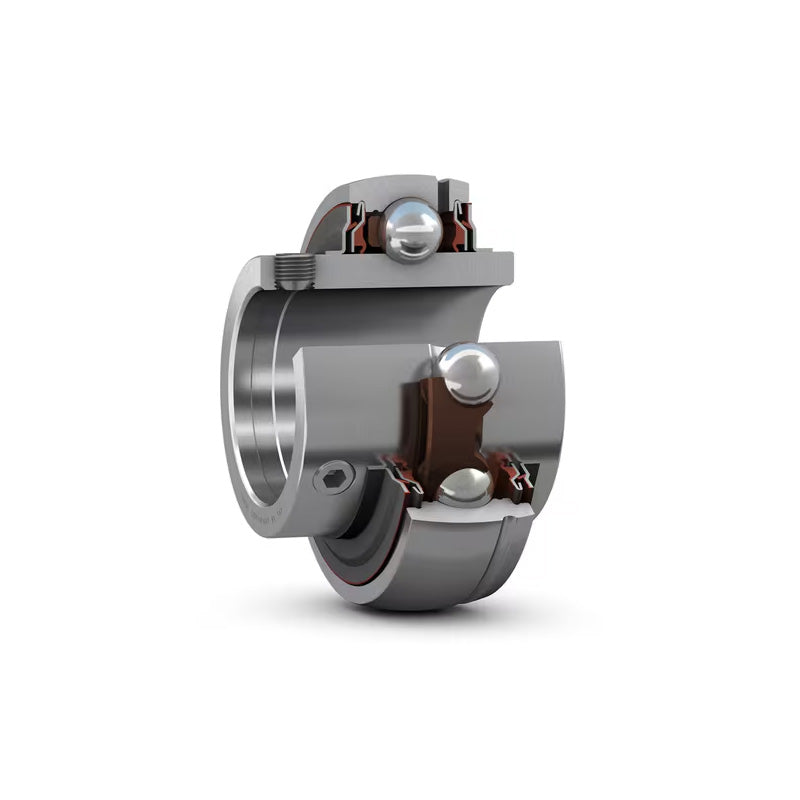

SKF YAR204-2RF/VE495 Grub Screw Bearing Insert with Food-Grade Grease 20mm Bore 47mm Outside Diameter
SKF YAR204-2RF/VE495 Grub Screw Bearing Insert with Food-Grade Grease 20mm Bore 47mm Outside Diameter
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
10+
CHF 54.39
20+
CHF 51.34
30+
CHF 50.73
40+
CHF 50.11
50+
CHF 49.50
75+
CHF 48.89
100+
CHF 45.84
200+
CHF 45.23
250+
CHF 44.61
500+
CHF 44.00
1000+
CHF 42.78
Description
Description
|
SKF YAR-2 Y-bearings with Grub Screws: These bearings are available with zinc-coated rings for use in corrosive environments. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. Benefits: Features highly efficient multiple seals made of food-compatible rubber and stainless steel flingers, are fitted with grub screws made of stainless steel, are filled with a food-grade grease, can be re-lubricated through the lubrication holes in the outer ring |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- YAR
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 31mm |
| C | 14mm |
| d1 | 28.2mm |
| s1 | 18.3mm |
| r1r2 min | 0.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| Weight | 0.14 kg |
