SKU: YAR205-100-2FW/VA201-SKF

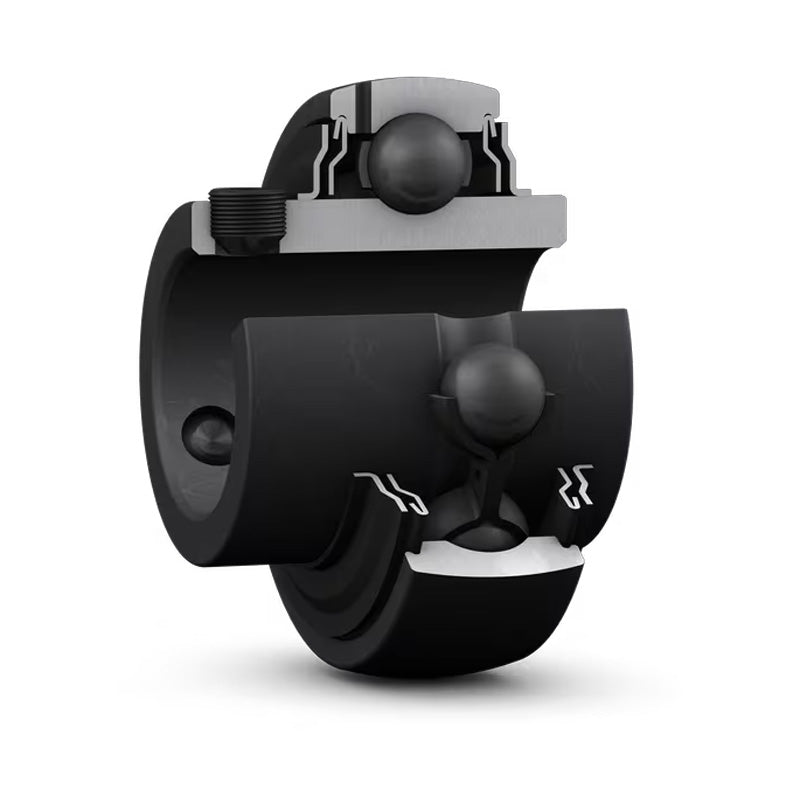

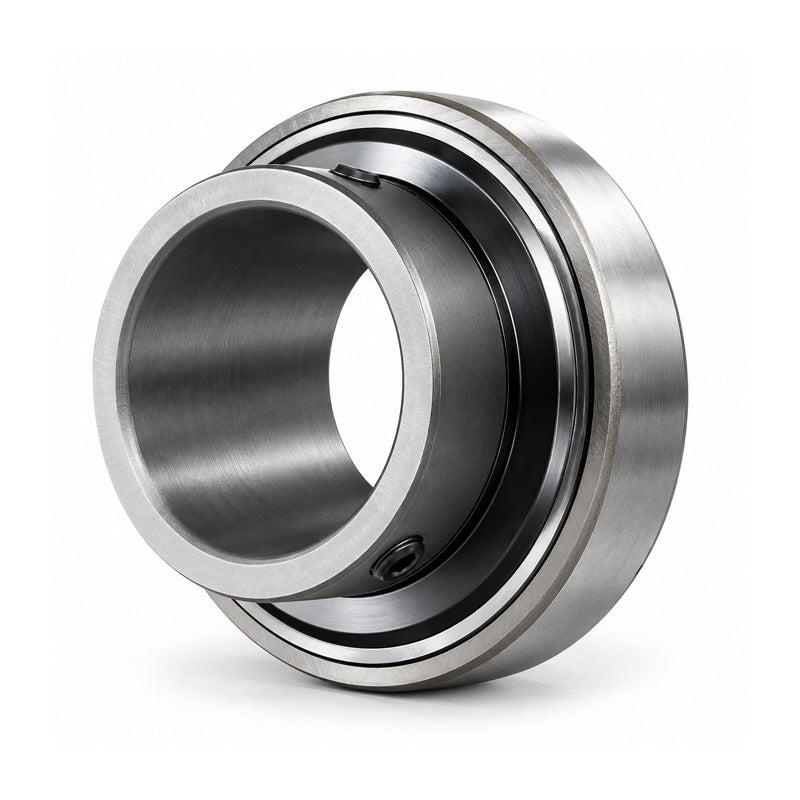

SKF YAR2051002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1 inch shaft
SKF YAR2051002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1 inch shaft
Regular price
CHF 113.76
ex VAT
Regular price
Sale price
CHF 113.76
ex VAT
In stock
Price Break
10+
CHF 101.25
19+
CHF 95.56
29+
CHF 94.42
39+
CHF 93.28
49+
CHF 92.15
74+
CHF 91.01
99+
CHF 85.32
199+
CHF 84.18
249+
CHF 83.04
499+
CHF 81.91
999+
CHF 79.63
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 34.1mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.8mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.19 kg |
