SKU: YAR205-100-2FW/VA228-SKF

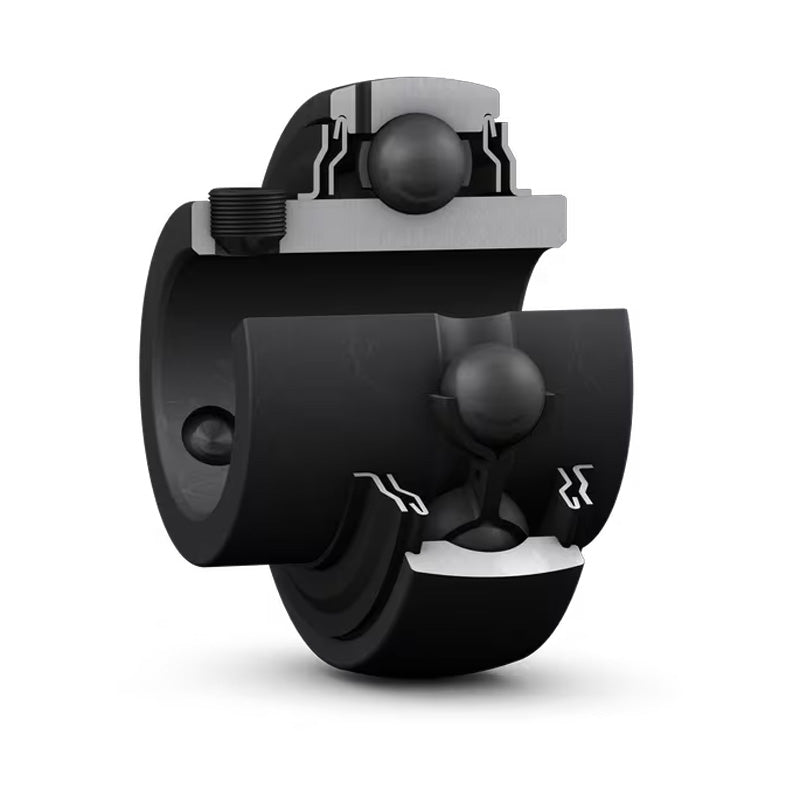

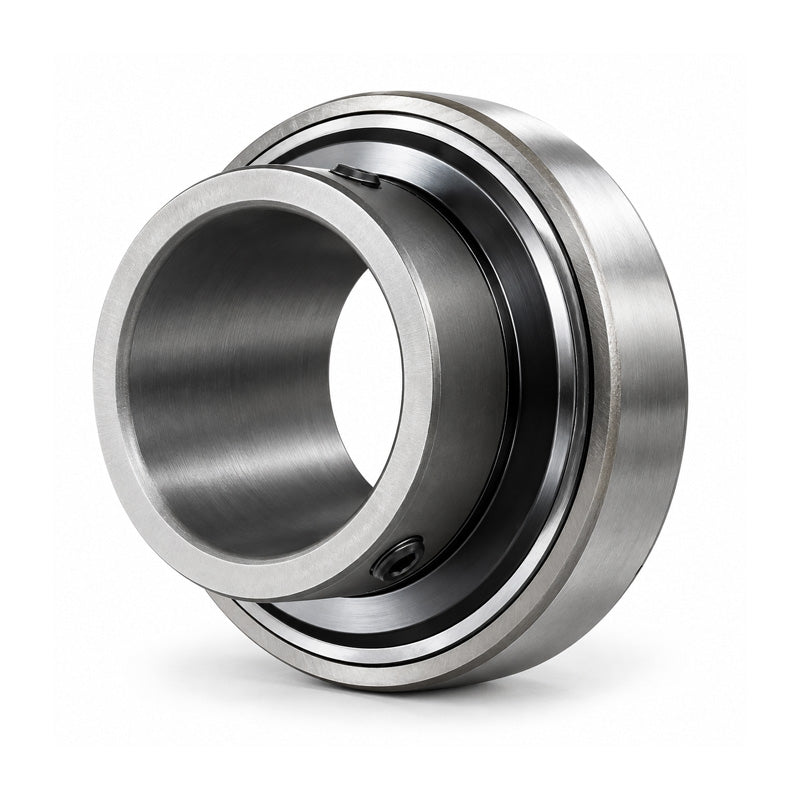

SKF YAR2051002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1 inch shaft
SKF YAR2051002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1 inch shaft
Regular price
CHF 127.00
ex VAT
Regular price
Sale price
CHF 127.00
ex VAT
In stock
Price Break
10+
CHF 100.87
19+
CHF 95.20
29+
CHF 94.07
39+
CHF 92.94
49+
CHF 91.80
74+
CHF 90.67
99+
CHF 85.00
199+
CHF 83.87
249+
CHF 82.74
499+
CHF 81.60
999+
CHF 79.34
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1 inch |
|---|---|
| D | 52mm |
| B | 34.1mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.8mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.19 kg |
