SKU: YAR206-103-2FW/VA228-SKF

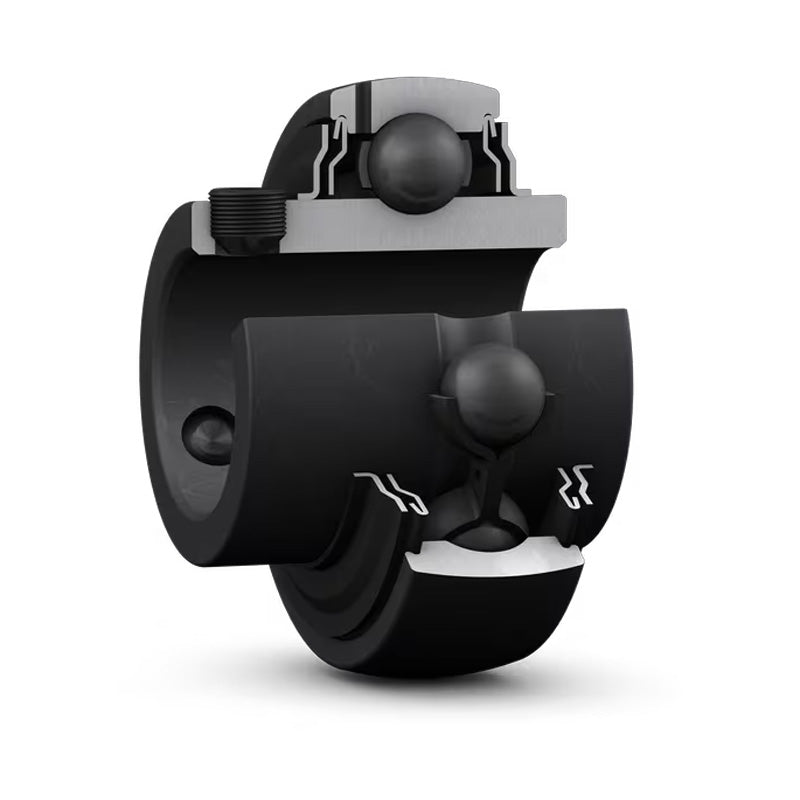

SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
Regular price
CHF 177.00
ex VAT
Regular price
Sale price
CHF 177.00
ex VAT
In stock
Price Break
10+
CHF 140.17
19+
CHF 132.30
29+
CHF 130.72
39+
CHF 129.15
49+
CHF 127.57
74+
CHF 126.00
99+
CHF 118.12
199+
CHF 116.55
249+
CHF 114.97
499+
CHF 113.40
999+
CHF 110.25
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| B | 38.1mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22.2mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 0.31 kg |
