SKU: YAR206-2FW/VA201-SKF

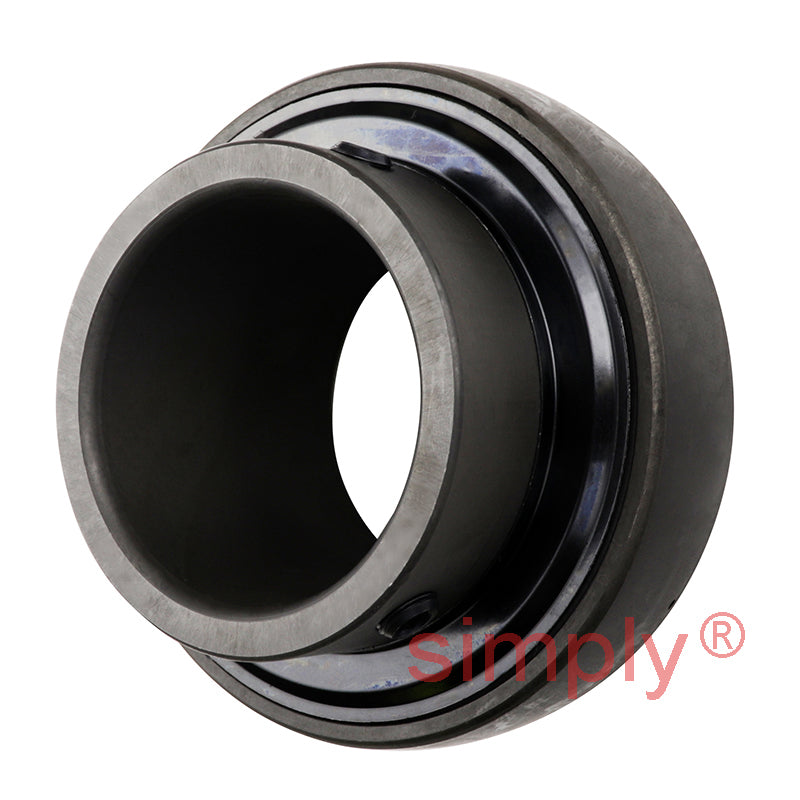

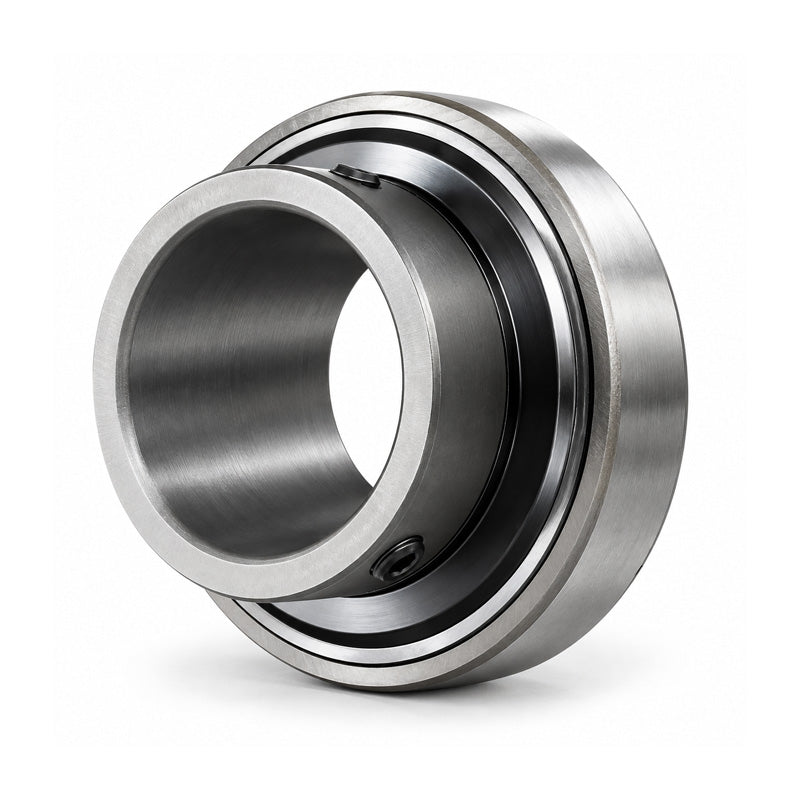

SKF YAR2062FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 30x62x38.1mm
SKF YAR2062FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 30x62x38.1mm
Regular price
CHF 147.63
ex VAT
Regular price
Sale price
CHF 147.63
ex VAT
In stock
Price Break
10+
CHF 131.39
19+
CHF 124.01
29+
CHF 122.53
39+
CHF 121.06
49+
CHF 119.58
74+
CHF 118.10
99+
CHF 110.72
199+
CHF 109.25
249+
CHF 107.77
499+
CHF 106.29
999+
CHF 103.34
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 38.1mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22.2mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 19.5 |
| Static load Co | 11.2 kN |
| Weight | 0.28 kg |
