SKU: YAR207-107-2FW/VA228-SKF

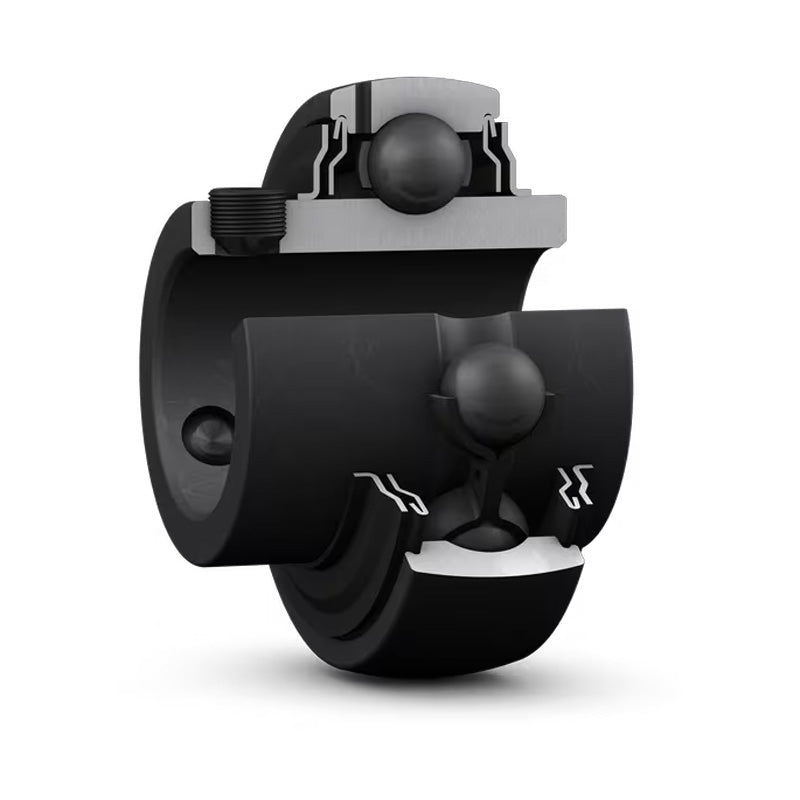

SKF YAR2071072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-7/16 inch shaft
SKF YAR2071072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-7/16 inch shaft
Regular price
CHF 204.00
ex VAT
Regular price
Sale price
CHF 204.00
ex VAT
In stock
Price Break
10+
CHF 162.33
19+
CHF 153.21
29+
CHF 151.39
39+
CHF 149.56
49+
CHF 147.74
74+
CHF 145.92
99+
CHF 136.80
199+
CHF 134.97
249+
CHF 133.15
499+
CHF 131.32
999+
CHF 127.68
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| D | 72mm |
| B | 42.9mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 25.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 0.42 kg |
