SKU: YAR207-2RF/VE495-SKF
SKF YAR207-2RF/VE495 Grub Screw Bearing Insert with Food-Grade Grease 35mm Bore 72mm Outside Diameter
SKF YAR207-2RF/VE495 Grub Screw Bearing Insert with Food-Grade Grease 35mm Bore 72mm Outside Diameter
Regular price
CHF 117.00
ex VAT
Regular price
Sale price
CHF 117.00
ex VAT
In stock
Price Break
10+
CHF 92.89
20+
CHF 87.67
30+
CHF 86.63
40+
CHF 85.58
50+
CHF 84.54
75+
CHF 83.50
100+
CHF 78.28
200+
CHF 77.23
250+
CHF 76.19
500+
CHF 75.15
1000+
CHF 73.06
Description
Description
|

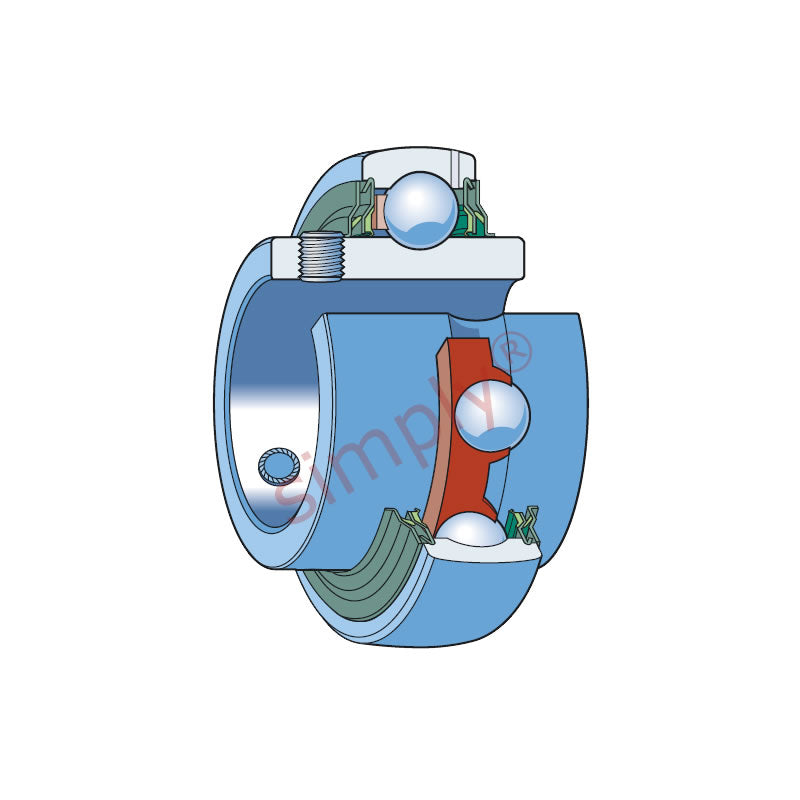

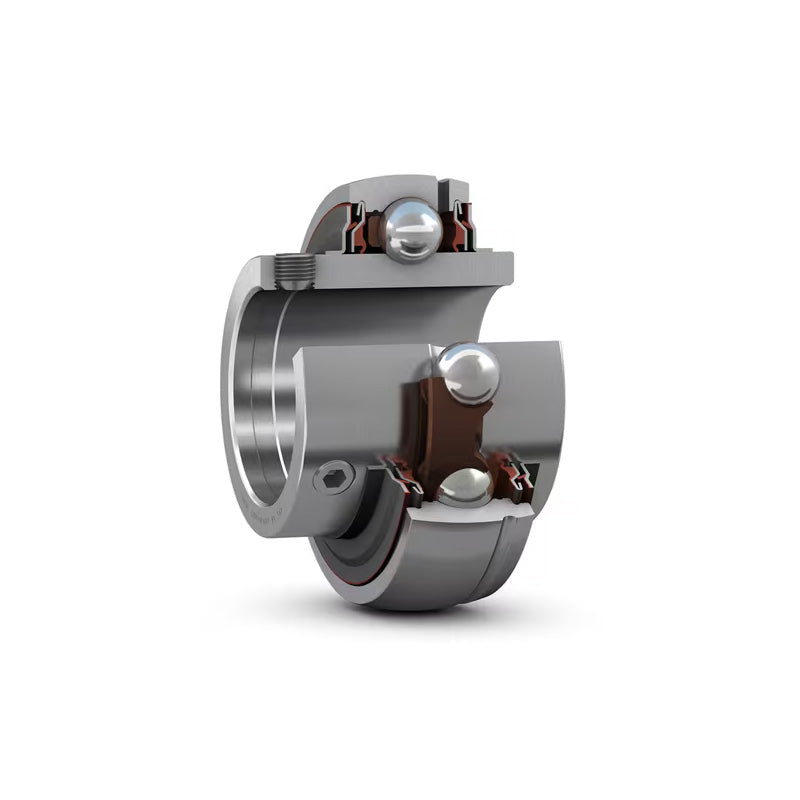

SKF YAR-2 Y-bearings with Grub Screws: These bearings are available with zinc-coated rings for use in corrosive environments. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. Benefits: Features highly efficient multiple seals made of food-compatible rubber and stainless steel flingers, are fitted with grub screws made of stainless steel, are filled with a food-grade grease, can be re-lubricated through the lubrication holes in the outer ring |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- YAR
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 42.9mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 25.4mm |
| r1r2 min | 1mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| Weight | 0.41 kg |
