SKU: YAR208-108-2FW/VA228-SKF

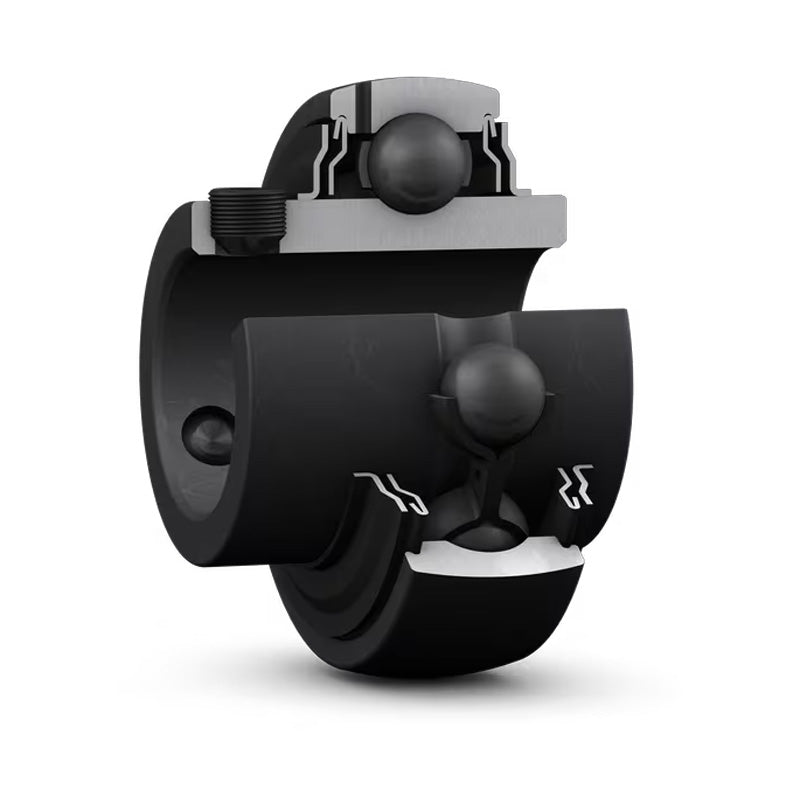

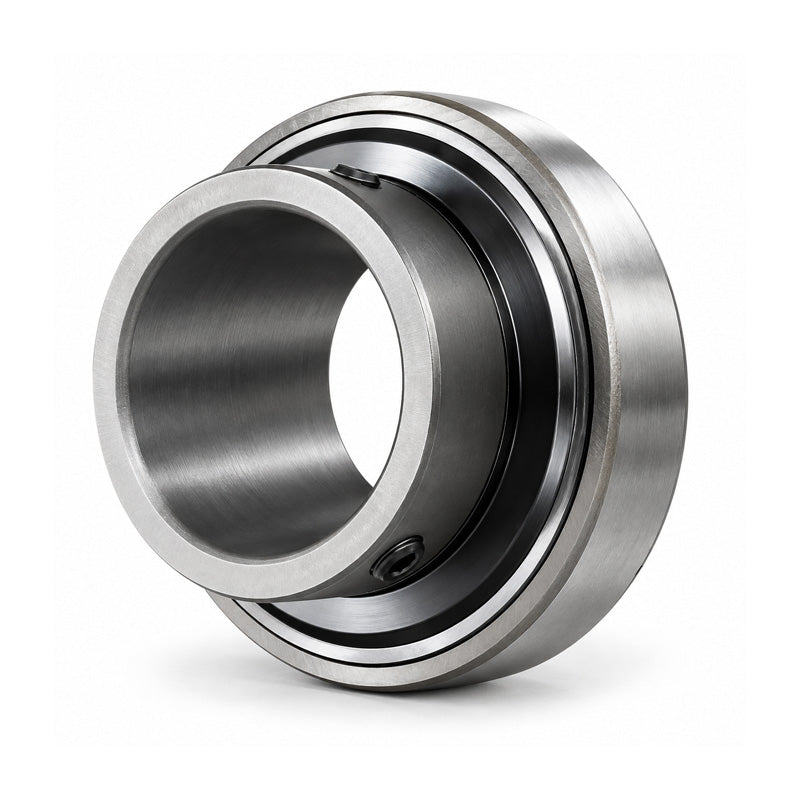

SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft
SKF YAR2081082FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/2 inch shaft
Regular price
CHF 194.00
ex VAT
Regular price
Sale price
CHF 194.00
ex VAT
In stock
Price Break
10+
CHF 154.30
19+
CHF 145.63
29+
CHF 143.90
39+
CHF 142.17
49+
CHF 140.43
74+
CHF 138.70
99+
CHF 130.03
199+
CHF 128.30
249+
CHF 126.56
499+
CHF 124.83
999+
CHF 121.36
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| B | 49.2mm |
| C | 21mm |
| d1 | 51.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 0.59 kg |
