SKU: YAR209-111-2FW/VA201-SKF

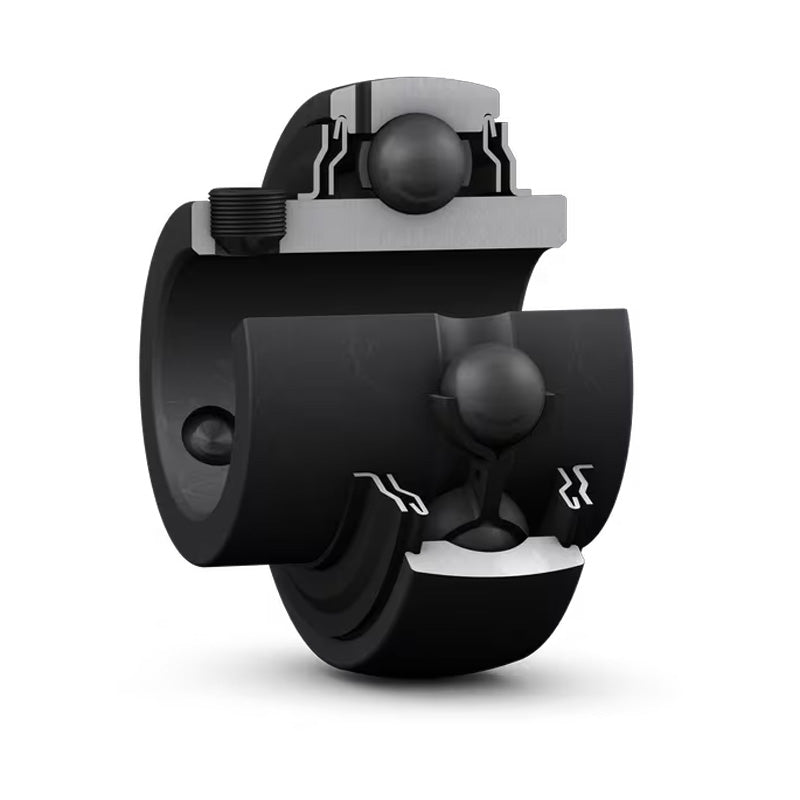

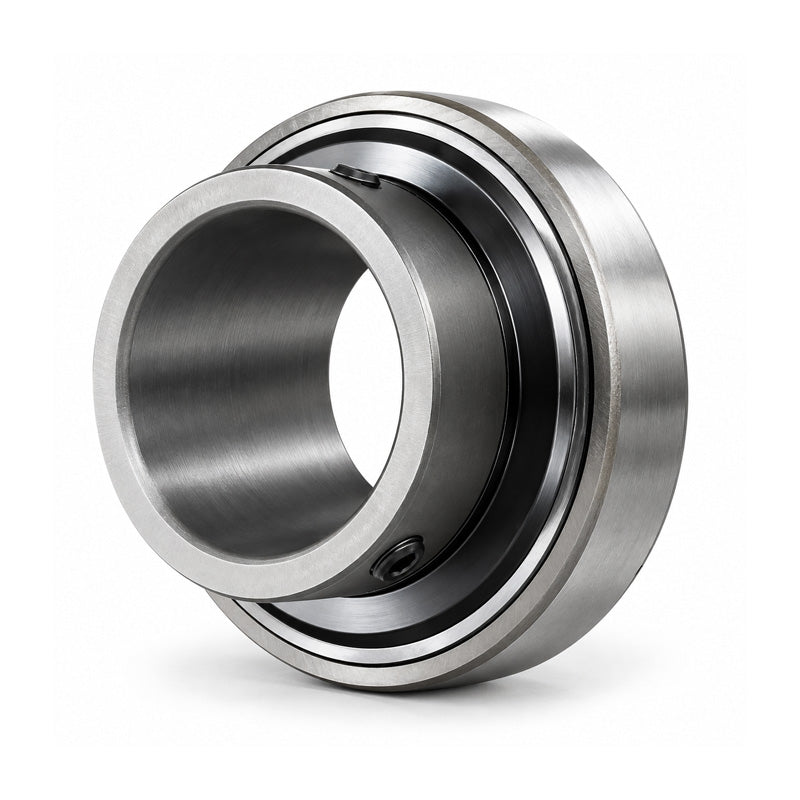

SKF YAR2091112FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-11/16 inch shaft
SKF YAR2091112FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 1-11/16 inch shaft
Regular price
CHF 188.00
ex VAT
Regular price
Sale price
CHF 188.00
ex VAT
In stock
Price Break
10+
CHF 149.33
19+
CHF 140.94
29+
CHF 139.26
39+
CHF 137.59
49+
CHF 135.91
74+
CHF 134.23
99+
CHF 125.84
199+
CHF 124.16
249+
CHF 122.48
499+
CHF 120.81
999+
CHF 117.45
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.75 kg |
