SKU: YAR209-111-2FW/VA228-SKF

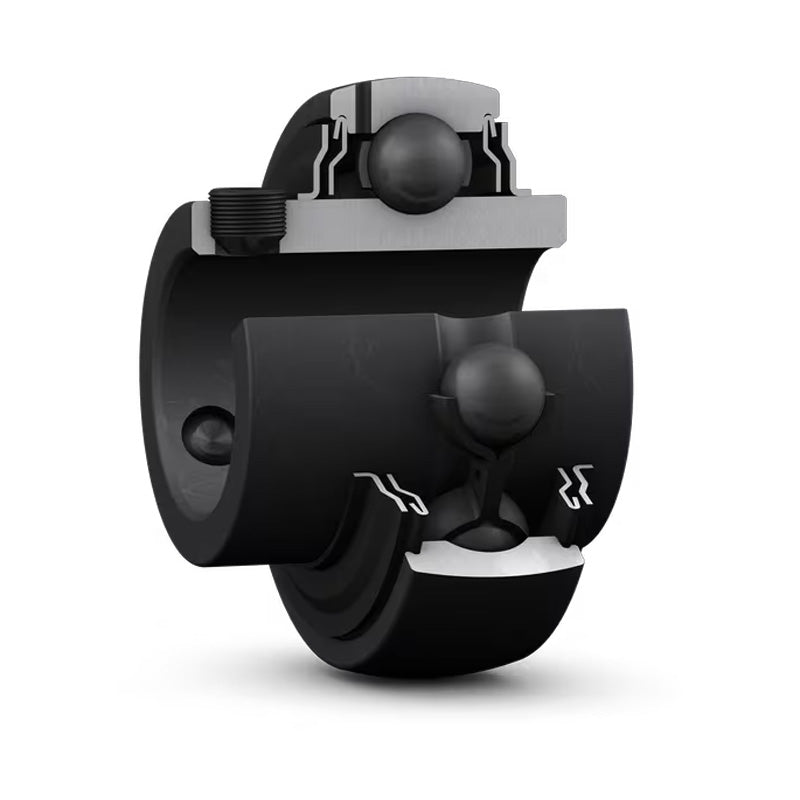

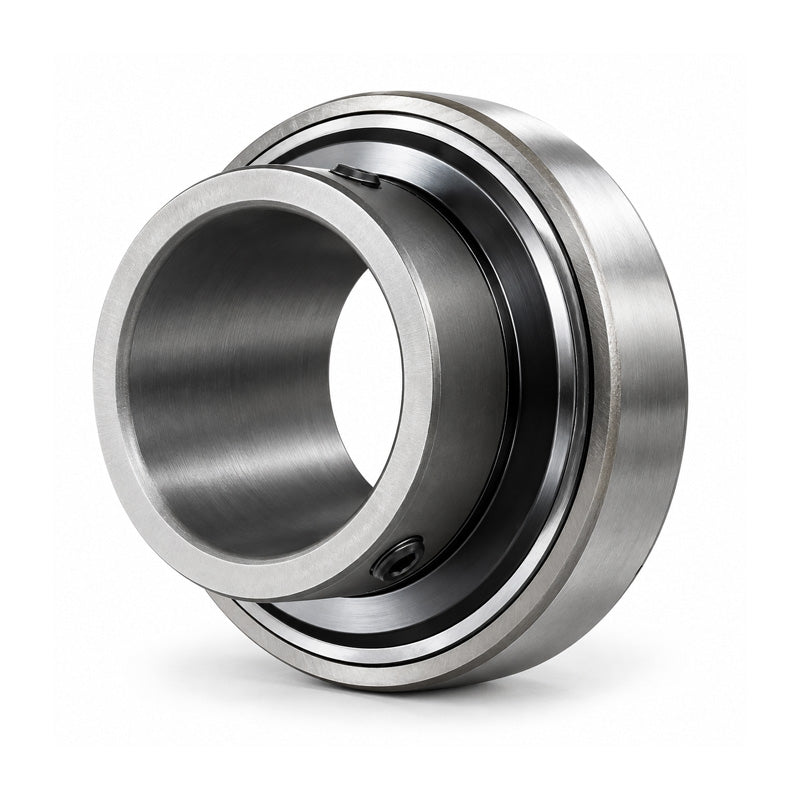

SKF YAR2091112FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-11/16 inch shaft
SKF YAR2091112FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-11/16 inch shaft
Regular price
CHF 235.00
ex VAT
Regular price
Sale price
CHF 235.00
ex VAT
In stock
Price Break
10+
CHF 186.72
19+
CHF 176.23
29+
CHF 174.13
39+
CHF 172.03
49+
CHF 169.93
74+
CHF 167.84
99+
CHF 157.35
199+
CHF 155.25
249+
CHF 153.15
499+
CHF 151.05
999+
CHF 146.86
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.75 kg |
