SKU: YAR209-112-2FW/VA228-SKF

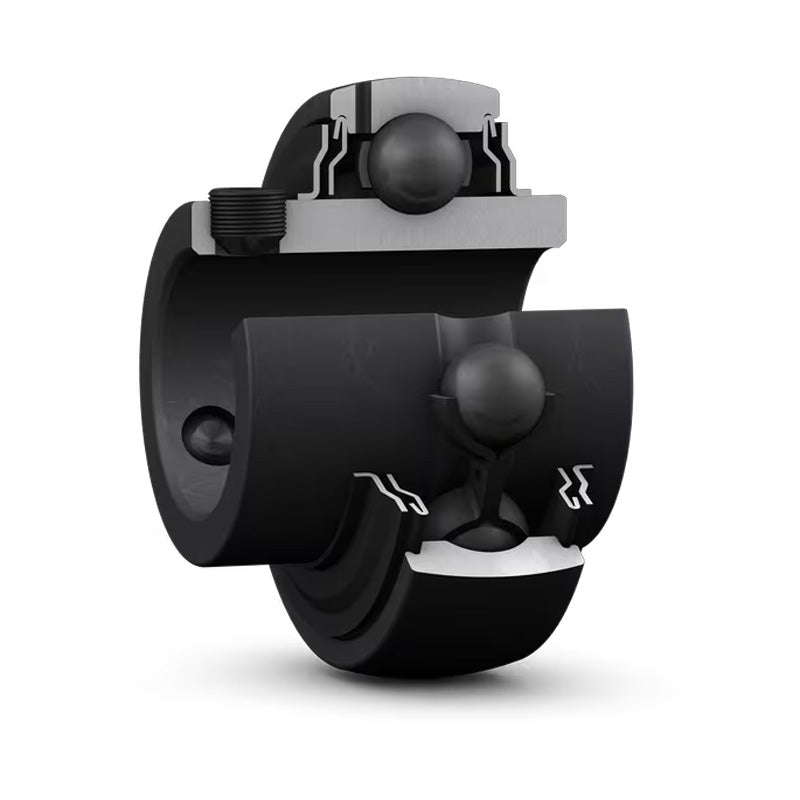

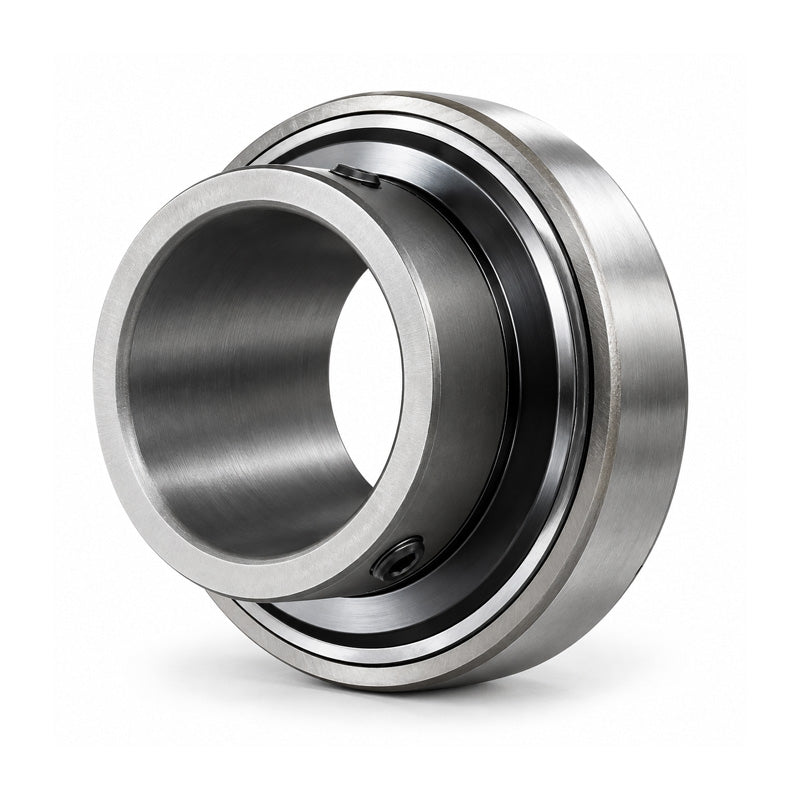

SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
SKF YAR2091122FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/4 inch shaft
Regular price
CHF 234.00
ex VAT
Regular price
Sale price
CHF 234.00
ex VAT
In stock
Price Break
10+
CHF 185.88
19+
CHF 175.43
29+
CHF 173.35
39+
CHF 171.26
49+
CHF 169.17
74+
CHF 167.08
99+
CHF 156.64
199+
CHF 154.55
249+
CHF 152.46
499+
CHF 150.37
999+
CHF 146.19
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 kN |
| Static load Co | 21.6 kN |
| Weight | 0.62 kg |
