SKU: YAR209-2FW/VA201-SKF

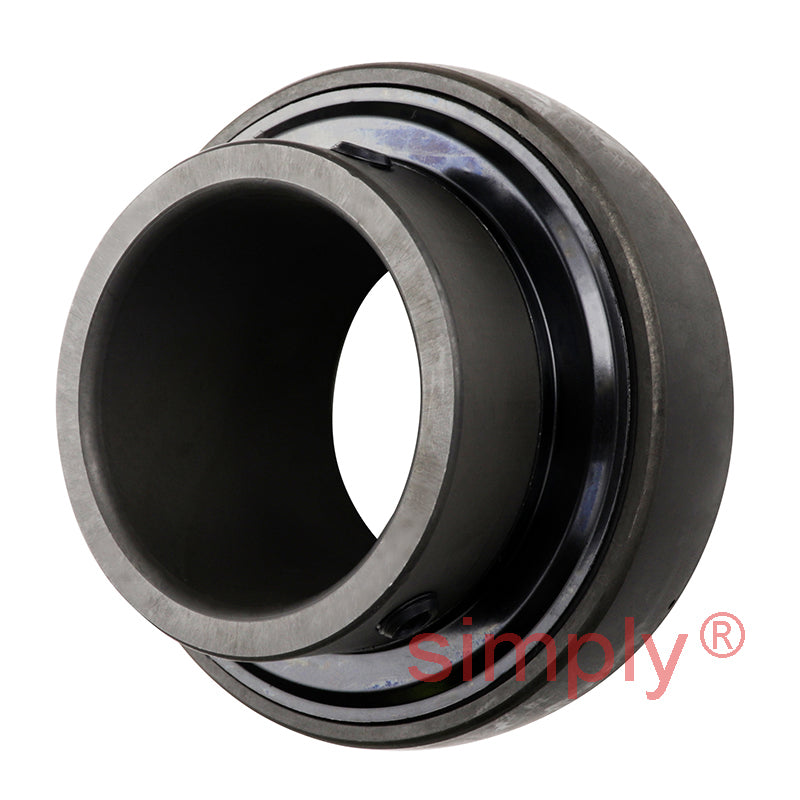

SKF YAR2092FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 45x85x49.2mm
SKF YAR2092FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 45x85x49.2mm
Regular price
CHF 207.43
ex VAT
Regular price
Sale price
CHF 207.43
ex VAT
In stock
Price Break
10+
CHF 184.61
19+
CHF 174.24
29+
CHF 172.17
39+
CHF 170.09
49+
CHF 168.02
74+
CHF 165.94
99+
CHF 155.57
199+
CHF 153.50
249+
CHF 151.42
499+
CHF 149.35
999+
CHF 145.20
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 49.2mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.2mm |
| r1r2 min | 1mm |
| Dynamic load C | 33.2 |
| Static load Co | 21.6 kN |
| Weight | 0.6 kg |
