SKU: YAR209-2FW/VA228-SKF

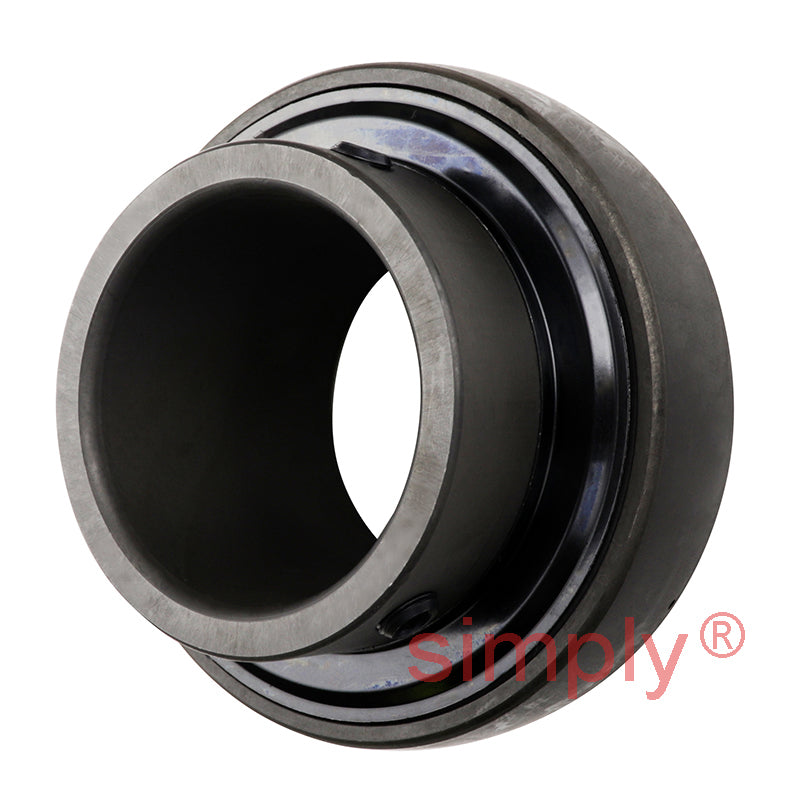

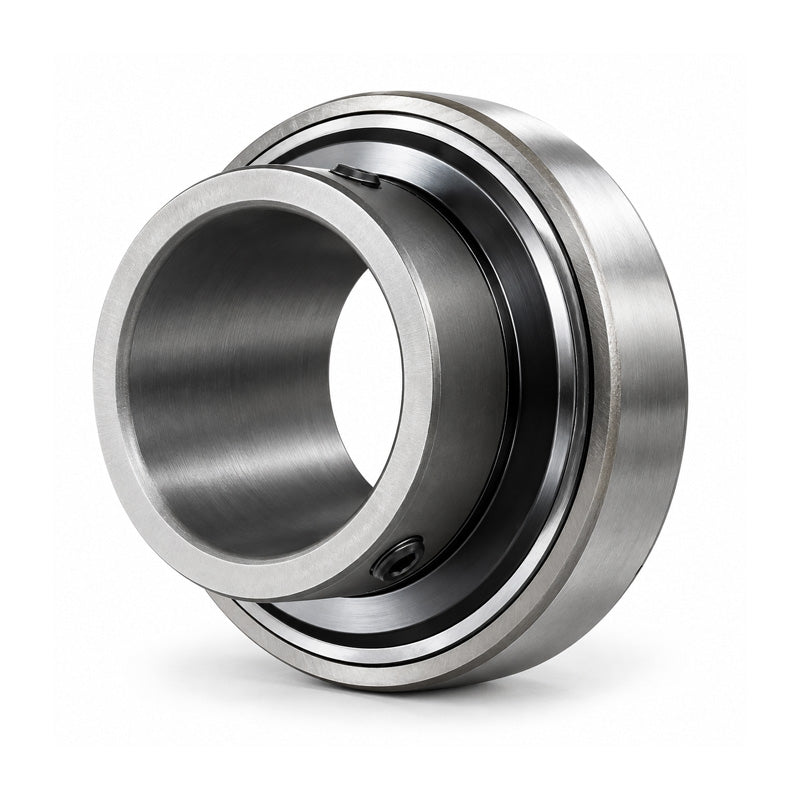

SKF YAR2092FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 45x85x49.2mm

Name: SKF YAR2092FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 45x85x49.2mm
Brand: SKF
SKU: YAR209-2FW/VA228-SKF
Price: 288.00 CHF
Availability: InStock

CHF 288.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 228.79

19+ CHF 215.94

29+ CHF 213.37

39+ CHF 210.80

49+ CHF 208.23

74+ CHF 205.65

99+ CHF 192.80

199+ CHF 190.23

249+ CHF 187.66

499+ CHF 185.09

999+ CHF 179.95

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING
Benefits:High temp tolerance from -40 to +250 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 45mm
Temperature Range:: High Temp

Technical

d	45mm
D	85mm
B	49.2mm
C	22mm
d1	56.8mm
s1	30.2mm
r1r2 min	1mm
Dynamic load C	33.2
Static load Co	21.6 kN
Weight	0.6 kg
