SKU: YAR210-115-2FW/VA228-SKF

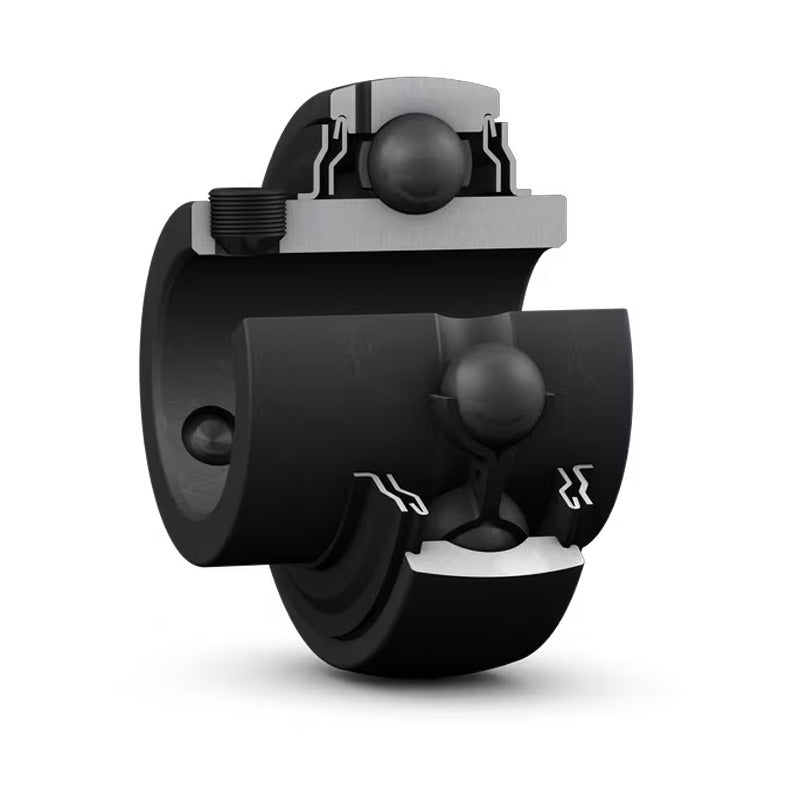

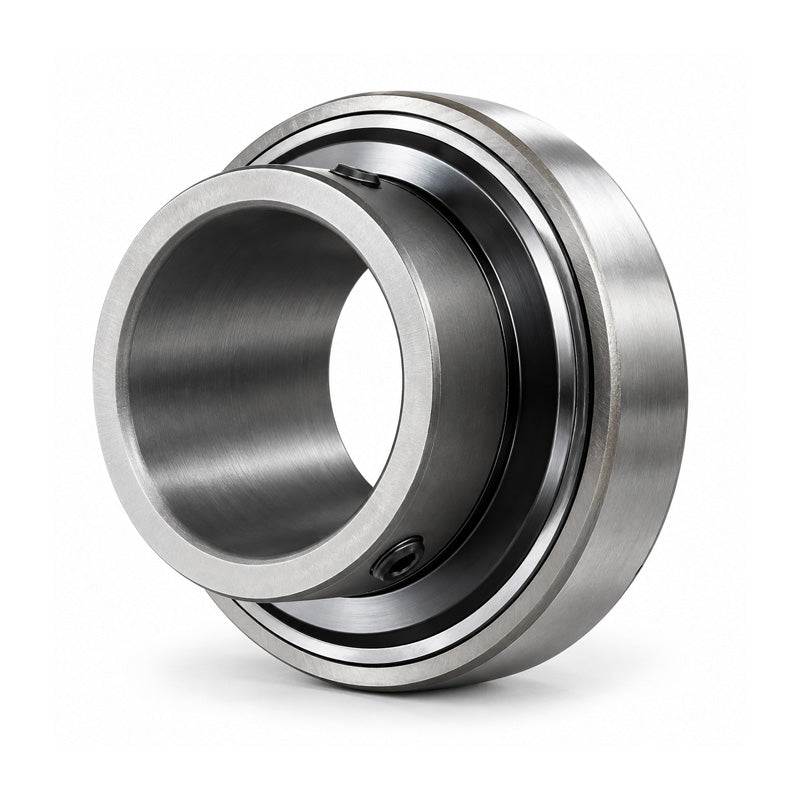

SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft
SKF YAR2101152FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-15/16 inch shaft
Regular price
CHF 329.78
ex VAT
Regular price
Sale price
CHF 329.78
ex VAT
In stock
Price Break
10+
CHF 293.50
19+
CHF 277.02
29+
CHF 273.72
39+
CHF 270.42
49+
CHF 267.12
74+
CHF 263.82
99+
CHF 247.34
199+
CHF 244.04
249+
CHF 240.74
499+
CHF 237.44
999+
CHF 230.85
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| B | 51.6mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32.6mm |
| r1r2 min | 1mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 0.78 kg |
