SKU: YAR210-2FW/VA228-SKF

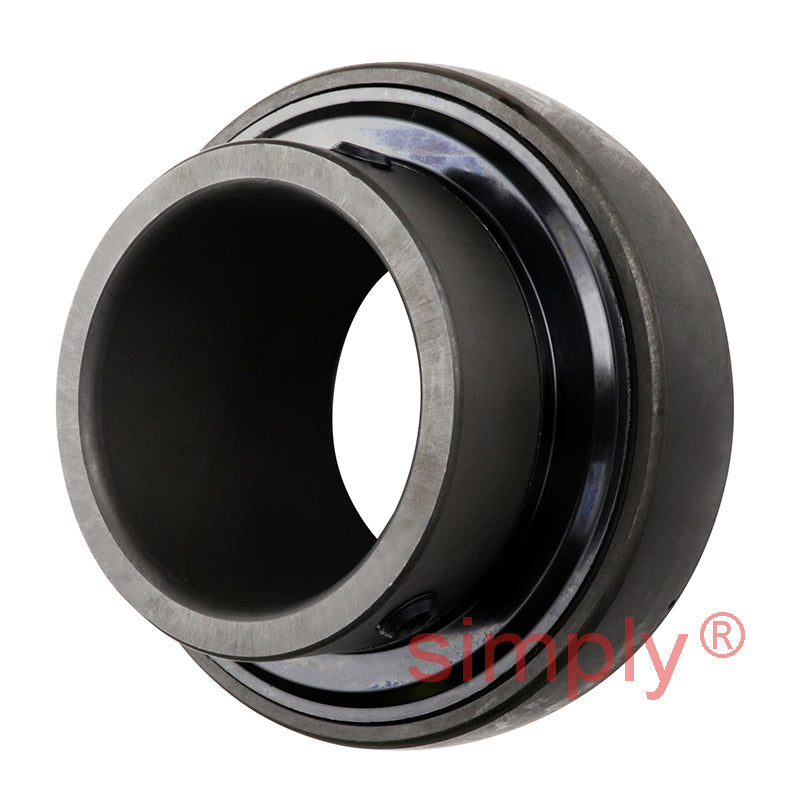

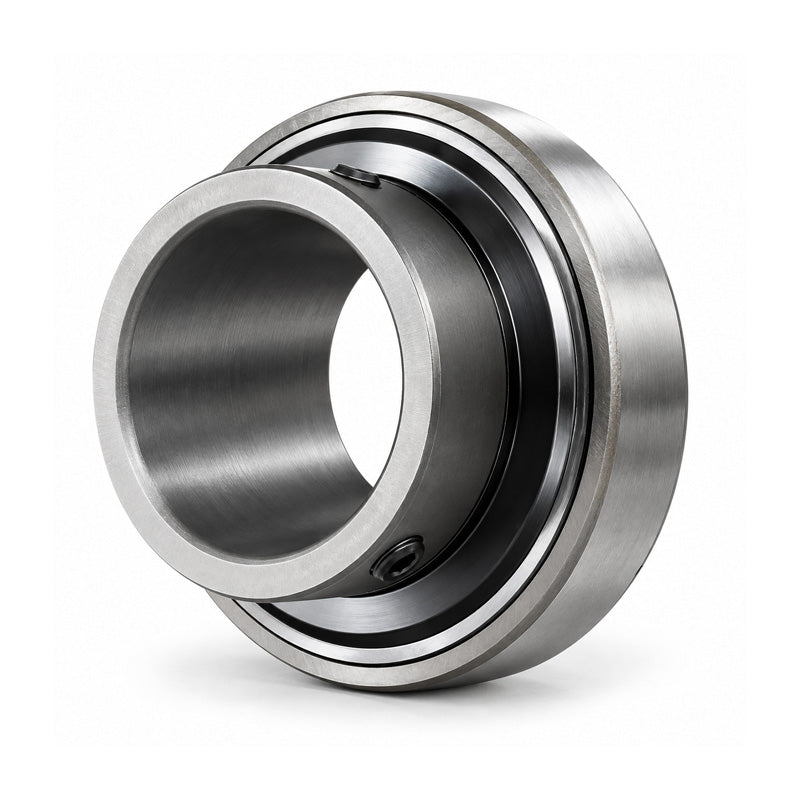

SKF YAR2102FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 50x90x51.6mm
SKF YAR2102FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 50x90x51.6mm
Regular price
CHF 335.16
ex VAT
Regular price
Sale price
CHF 335.16
ex VAT
In stock
Price Break
10+
CHF 298.29
19+
CHF 281.53
29+
CHF 278.18
39+
CHF 274.83
49+
CHF 271.48
74+
CHF 268.13
99+
CHF 251.37
199+
CHF 248.02
249+
CHF 244.67
499+
CHF 241.32
999+
CHF 234.61
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 51.6mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 32.6mm |
| r1r2 min | 1mm |
| Dynamic load C | 35.1 |
| Static load Co | 23.2 kN |
| Weight | 0.69 kg |
