SKU: YAR211-200-2FW/VA201-SKF

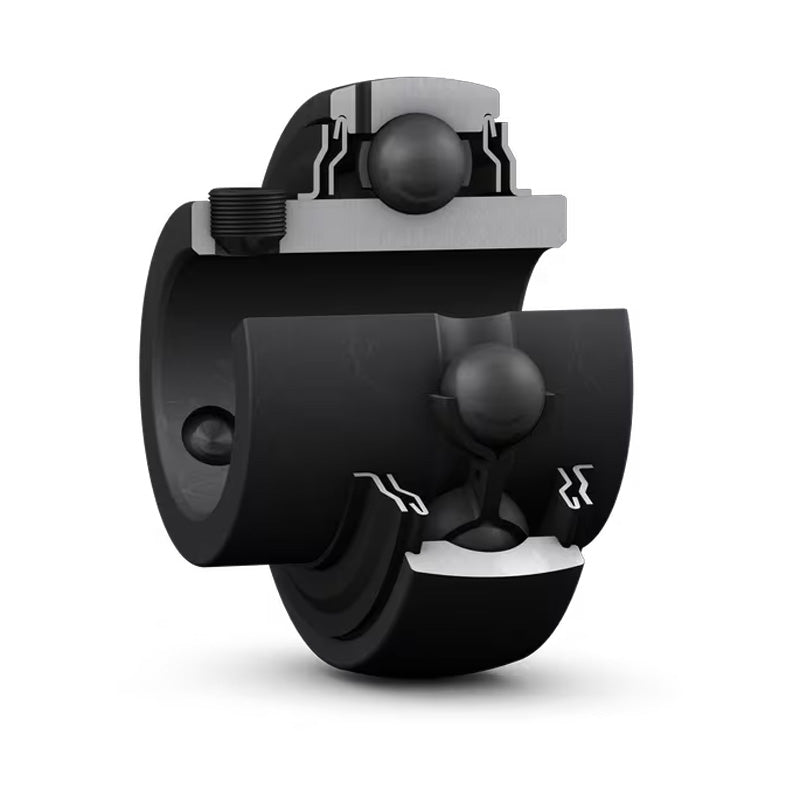

SKF YAR2112002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 2 inch shaft
SKF YAR2112002FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 2 inch shaft
Regular price
CHF 235.71
ex VAT
Regular price
Sale price
CHF 235.71
ex VAT
In stock
Price Break
10+
CHF 209.78
19+
CHF 198.00
29+
CHF 195.64
39+
CHF 193.28
49+
CHF 190.93
74+
CHF 188.57
99+
CHF 176.78
199+
CHF 174.43
249+
CHF 172.07
499+
CHF 169.71
999+
CHF 165.00
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| B | 55.6mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 33.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 1.1 kg |
