SKU: YAR211-200-2FW/VA228-SKF

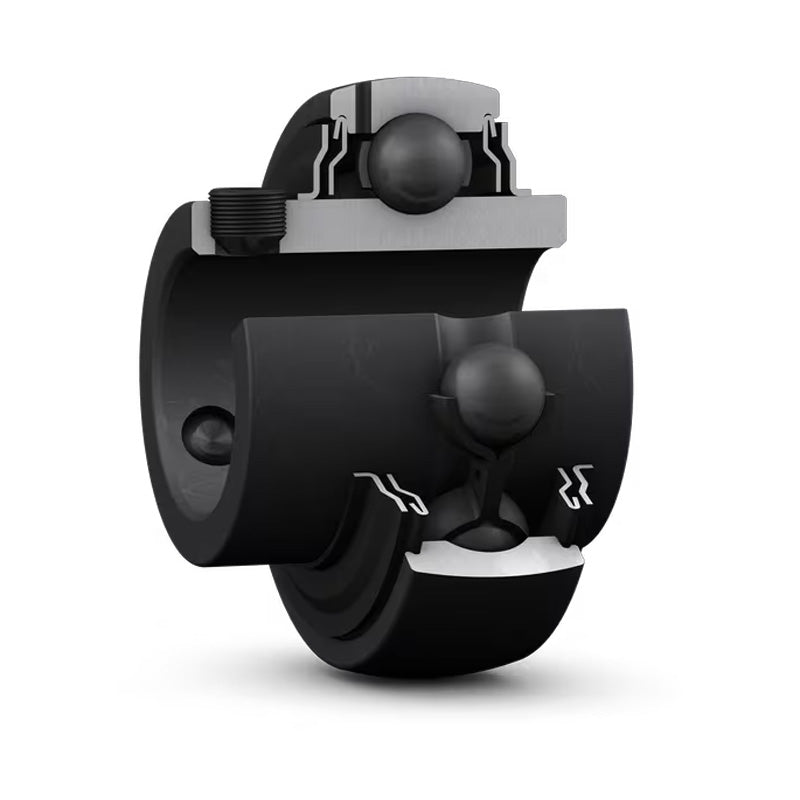

SKF YAR2112002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2 inch shaft

Name: SKF YAR2112002FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2 inch shaft
Brand: SKF
SKU: YAR211-200-2FW/VA228-SKF
Price: 380.00 CHF
Availability: InStock

CHF 380.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 302.58

19+ CHF 285.58

29+ CHF 282.18

39+ CHF 278.78

49+ CHF 275.38

74+ CHF 271.98

99+ CHF 254.99

199+ CHF 251.59

249+ CHF 248.19

499+ CHF 244.79

999+ CHF 237.99

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50.8mm = 2 inch
Temperature Range:: High Temp

Technical

d	2 inch
D	100mm
B	55.6mm
C	25mm
d1	69.1mm
s1	33.4mm
r1r2 min	1mm
Dynamic load C	43.6 kN
Static load Co	29 kN
Weight	1.1 kg
