SKU: YAR211-2FW/VA228-SKF

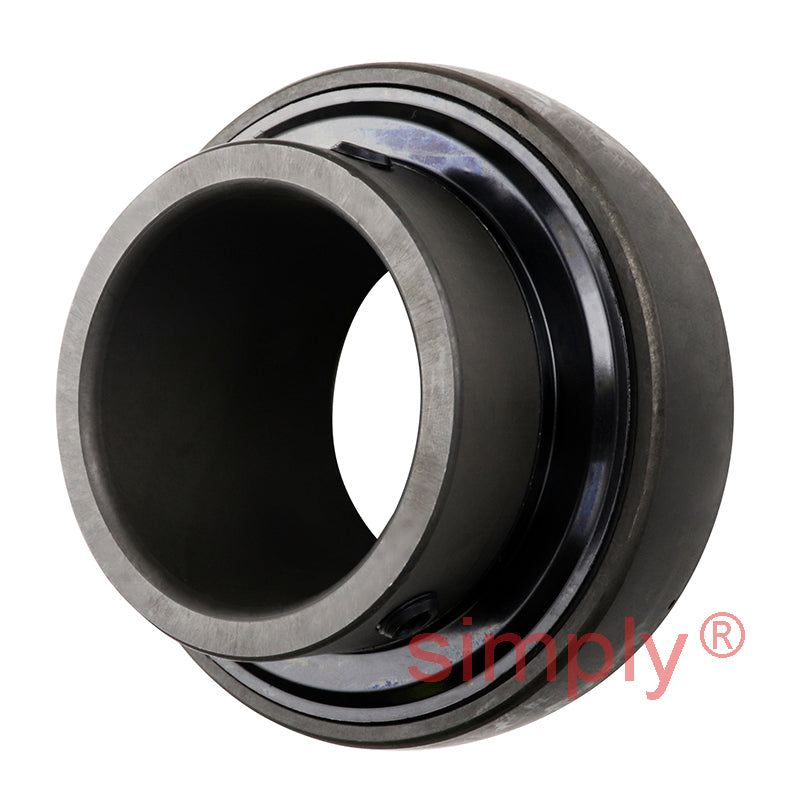

SKF YAR2112FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 55x100x55.6mm
SKF YAR2112FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 55x100x55.6mm
Regular price
CHF 388.04
ex VAT
Regular price
Sale price
CHF 388.04
ex VAT
In stock
Price Break
10+
CHF 345.36
19+
CHF 325.95
29+
CHF 322.07
39+
CHF 318.19
49+
CHF 314.31
74+
CHF 310.43
99+
CHF 291.03
199+
CHF 287.15
249+
CHF 283.27
499+
CHF 279.39
999+
CHF 271.63
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 55.6mm |
| C | 25mm |
| d1 | 69.1mm |
| s1 | 33.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 43.6 |
| Static load Co | 29 kN |
| Weight | 0.94 kg |
