SKU: YAR212-207-2FW/VA228-SKF

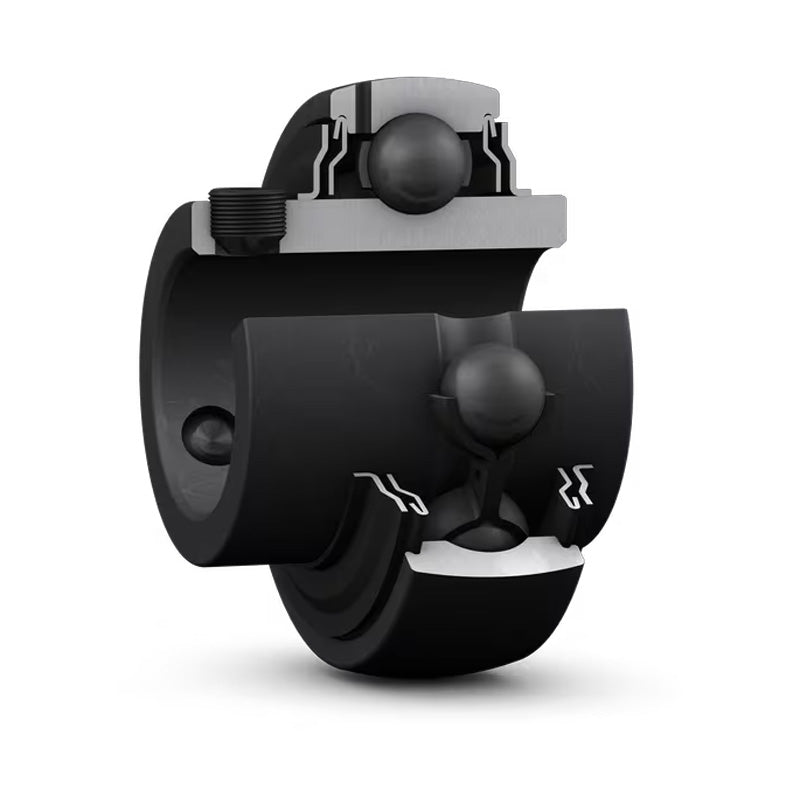

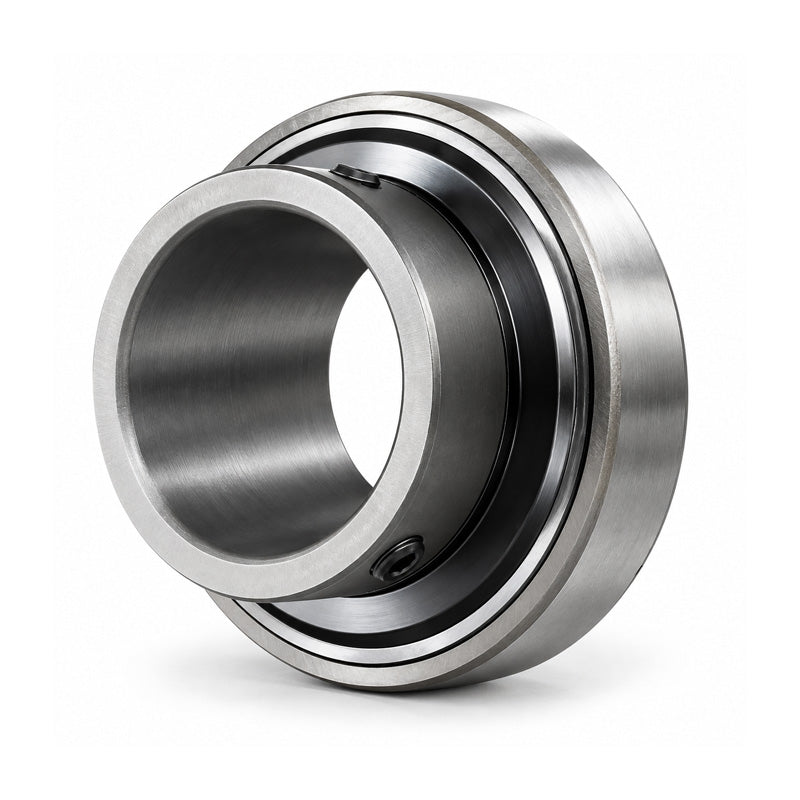

SKF YAR2122072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-7/16 inch shaft
SKF YAR2122072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 2-7/16 inch shaft
Regular price
CHF 489.00
ex VAT
Regular price
Sale price
CHF 489.00
ex VAT
In stock
Price Break
10+
CHF 388.89
19+
CHF 367.05
29+
CHF 362.68
39+
CHF 358.31
49+
CHF 353.94
74+
CHF 349.57
99+
CHF 327.72
199+
CHF 323.35
249+
CHF 318.98
499+
CHF 314.61
999+
CHF 305.87
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 1.35 kg |
