SKU: YAR212-2FW/VA201-SKF

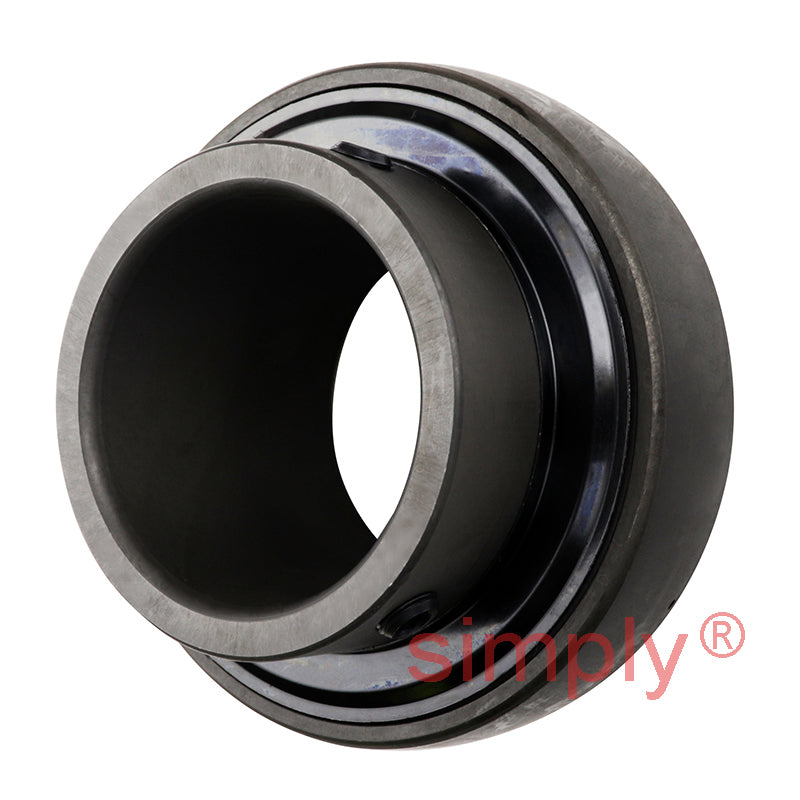

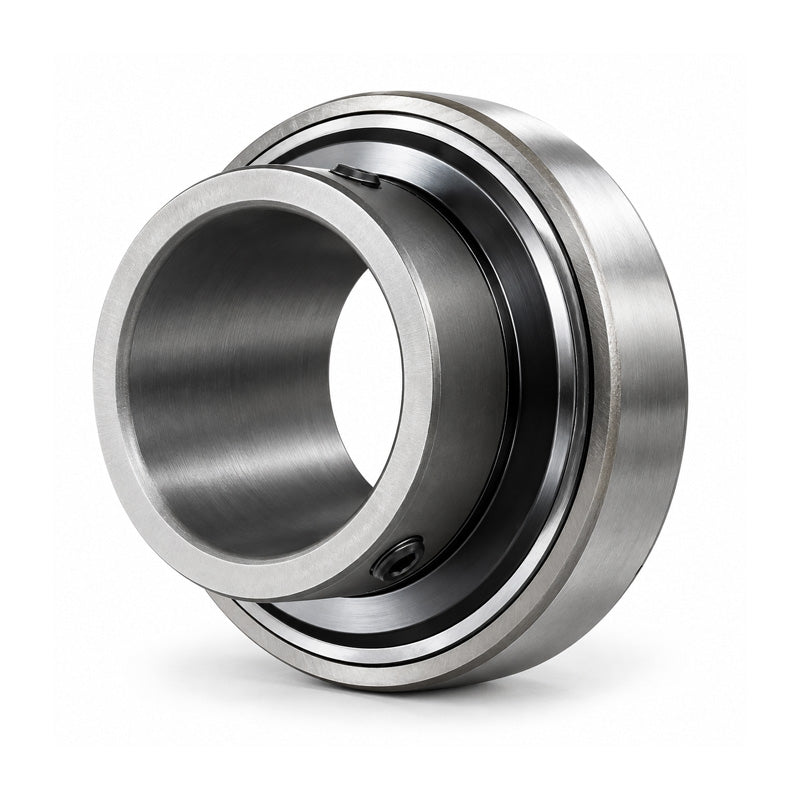

SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
SKF YAR2122FWVA201 Y Bearing Insert for High Temperature Applications with Pressed Steel Cage and Grub Screw Location 60x110x65.1mm
Regular price
CHF 334.00
ex VAT
Regular price
Sale price
CHF 334.00
ex VAT
In stock
Price Break
10+
CHF 265.41
19+
CHF 250.50
29+
CHF 247.52
39+
CHF 244.54
49+
CHF 241.55
74+
CHF 238.57
99+
CHF 223.66
199+
CHF 220.68
249+
CHF 217.70
499+
CHF 214.71
999+
CHF 208.75
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 |
| Static load Co | 36 kN |
| Weight | 1.3 kg |
