SKU: YAR212-2FW/VA228-SKF

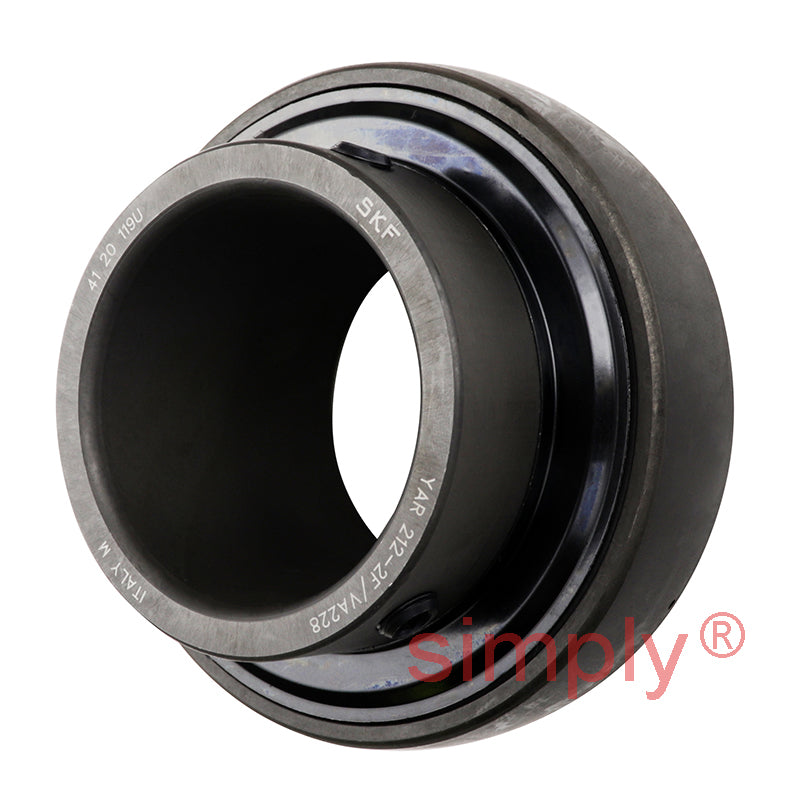

SKF YAR2122FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 60x110x65.1mm
SKF YAR2122FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 60x110x65.1mm
Regular price
CHF 428.60
ex VAT
Regular price
Sale price
CHF 428.60
ex VAT
In stock
Price Break
10+
CHF 381.45
19+
CHF 360.02
29+
CHF 355.74
39+
CHF 351.45
49+
CHF 347.17
74+
CHF 342.88
99+
CHF 321.45
199+
CHF 317.16
249+
CHF 312.88
499+
CHF 308.59
999+
CHF 300.02
Couldn't load pickup availability
Share this product
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 |
| Static load Co | 36 kN |
| Weight | 1.3 kg |
