SKU: YAR215-2F-SKF

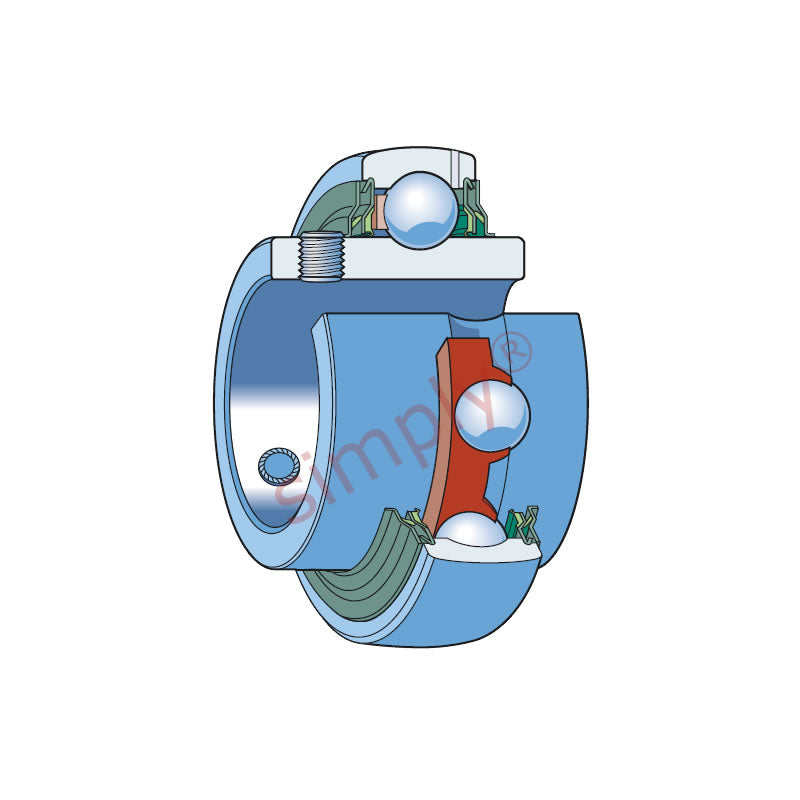

SKF YAR215-2F Grub Screw Type Bearing Insert with 75mm Bore 130mm Outside Diameter
SKF YAR215-2F Grub Screw Type Bearing Insert with 75mm Bore 130mm Outside Diameter
Regular price
CHF 156.00
ex VAT
Regular price
Sale price
CHF 156.00
ex VAT
In stock
Price Break
10+
CHF 124.09
20+
CHF 117.12
30+
CHF 115.73
40+
CHF 114.33
50+
CHF 112.94
75+
CHF 111.54
100+
CHF 104.57
200+
CHF 103.18
250+
CHF 101.78
500+
CHF 100.39
1000+
CHF 97.60
Description
Description
|
SKF YAR-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAR 2 series bearings have an extended inner ring on both sides. This reduces the extent to which the inner ring can tilt on the shaft enabling the bearing to run smoothly. The outer ring has two lubrication holes as standard. The bearings are fitted with the rugged standard integral seal. Plain sheet steel flingers are also provided if the bearing designation has a suffix of 2F, or rubberised sheet steel flingers (multiple seal) if the bearing designation has a suffix of 2RF. Benefits: Reduces inner ring tilting on shaft enabling the bearing to run smoothly, lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- YAR
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 73.1mm |
| C | 29mm |
| d1 | 92mm |
| s1 | 46.1mm |
| r1r2 min | 1.5mm |
| Static load Cr | 49 kN |
| Dynamic load Cor | 66.3 kN |
| Fatigue load limit Pu | 2.04 kN |
| Limiting speed | 2600 rpm |
| Weight | 2.05 kg |
