SKU: YAT205-SKF

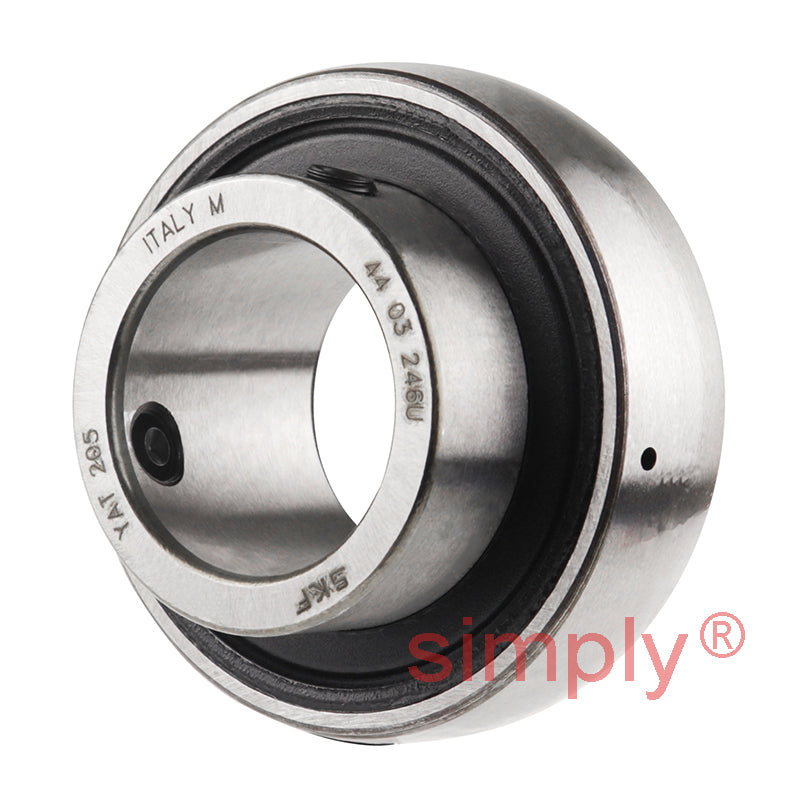

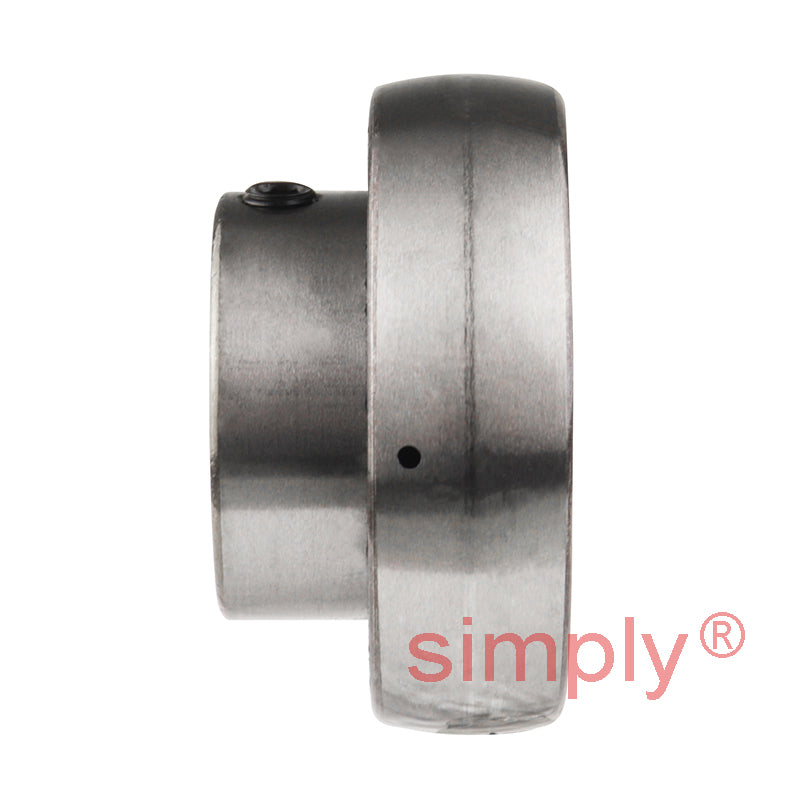

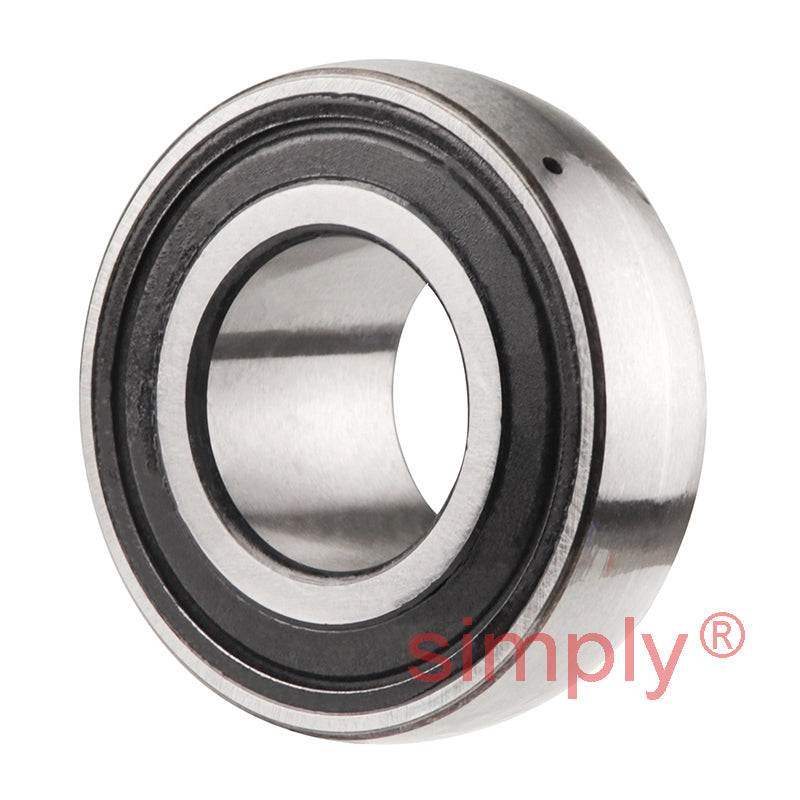

SKF YAT205 Grub Screw Type Bearing Insert with 25mm Bore 52mm Outside Diameter
SKF YAT205 Grub Screw Type Bearing Insert with 25mm Bore 52mm Outside Diameter
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
10+
CHF 14.92
20+
CHF 14.09
30+
CHF 13.92
40+
CHF 13.75
50+
CHF 13.58
75+
CHF 13.42
100+
CHF 12.58
200+
CHF 12.41
250+
CHF 12.24
500+
CHF 12.07
1000+
CHF 11.74
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.14 kg |
