SKU: YAT206-SKF

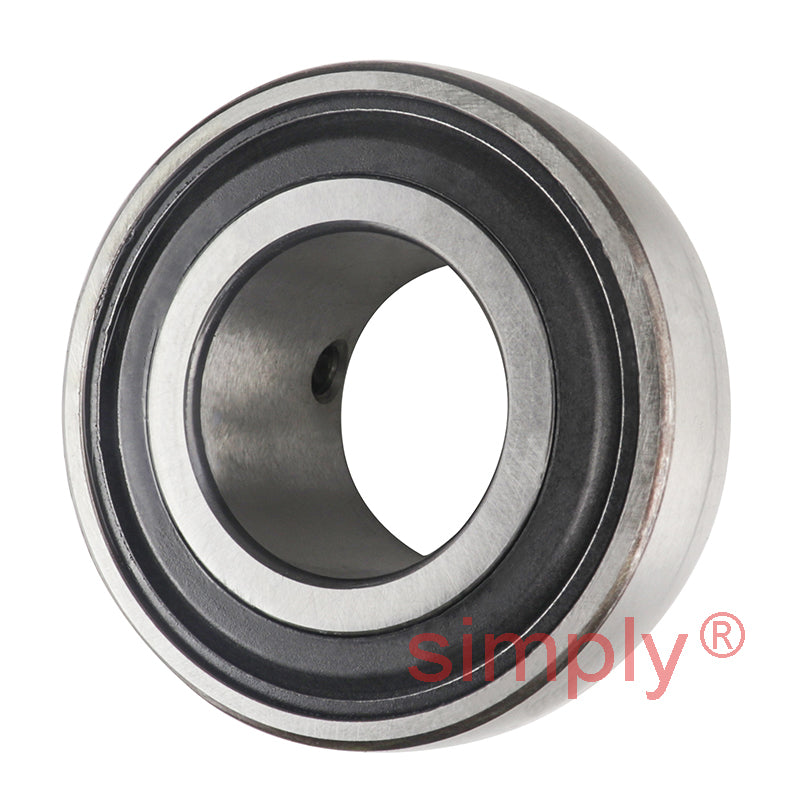

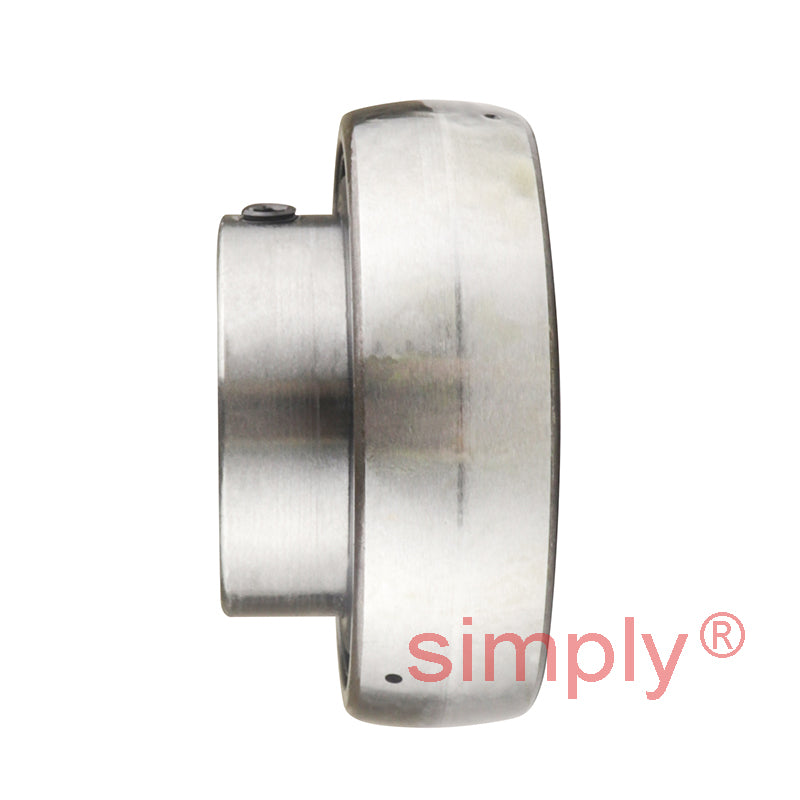

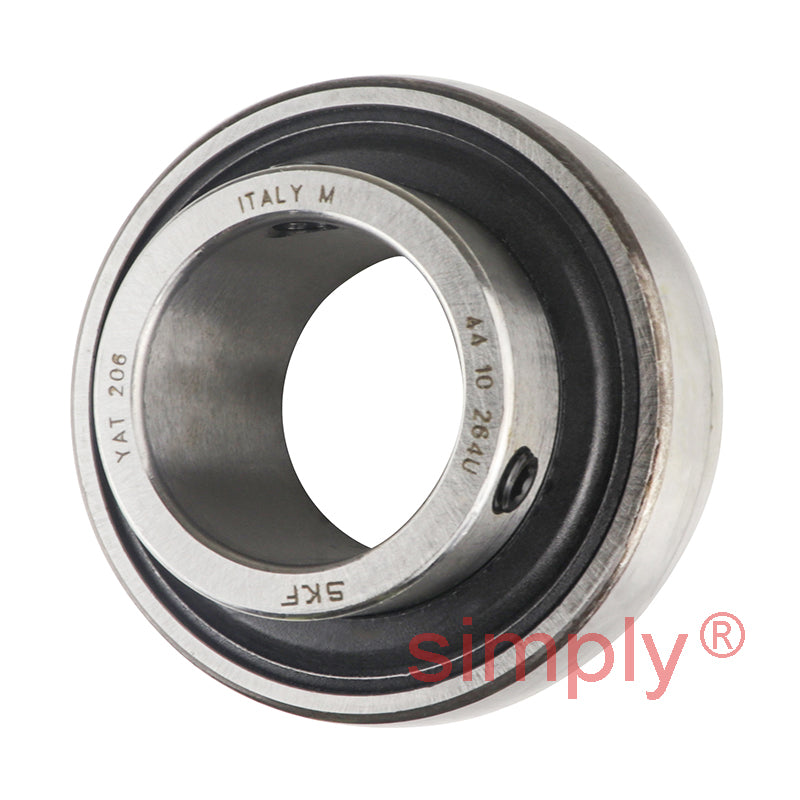

SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
SKF YAT206 Grub Screw Type Bearing Insert with 30mm Bore 62mm Outside Diameter
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
10+
CHF 18.19
20+
CHF 17.17
30+
CHF 16.96
40+
CHF 16.76
50+
CHF 16.55
75+
CHF 16.35
100+
CHF 15.33
200+
CHF 15.12
250+
CHF 14.92
500+
CHF 14.71
1000+
CHF 14.30
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- YAT
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 30.2mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 21mm |
| r1r2 min | 0.6mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 0.23 kg |
