SKU: YAT208-SKF

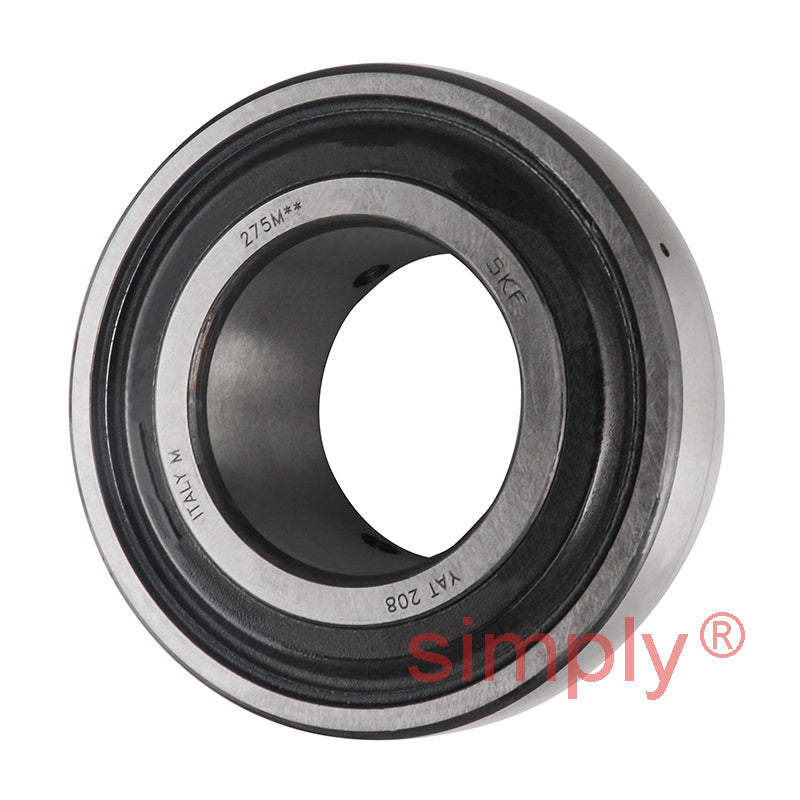

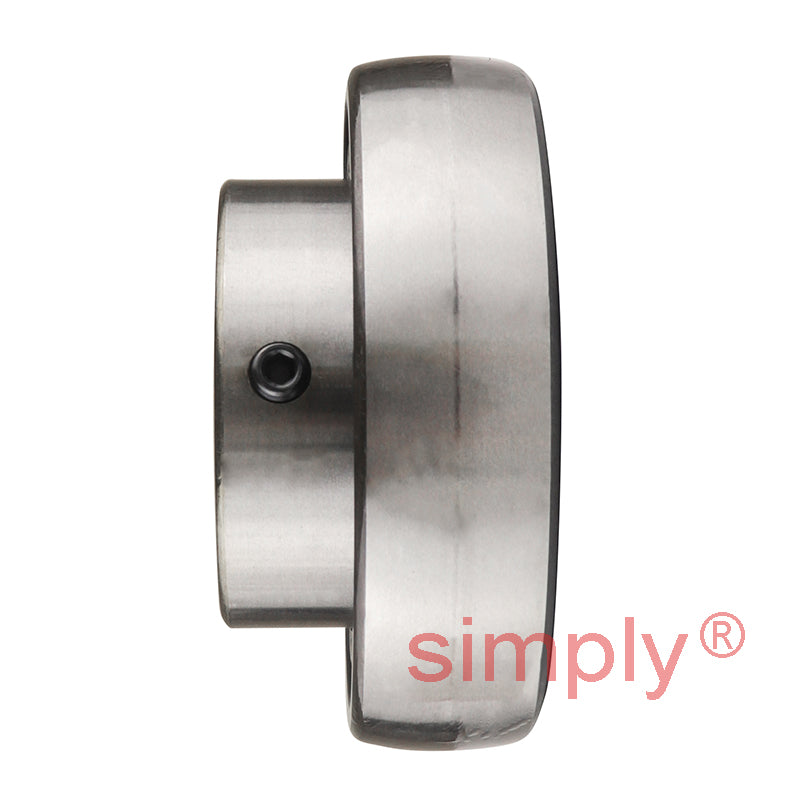

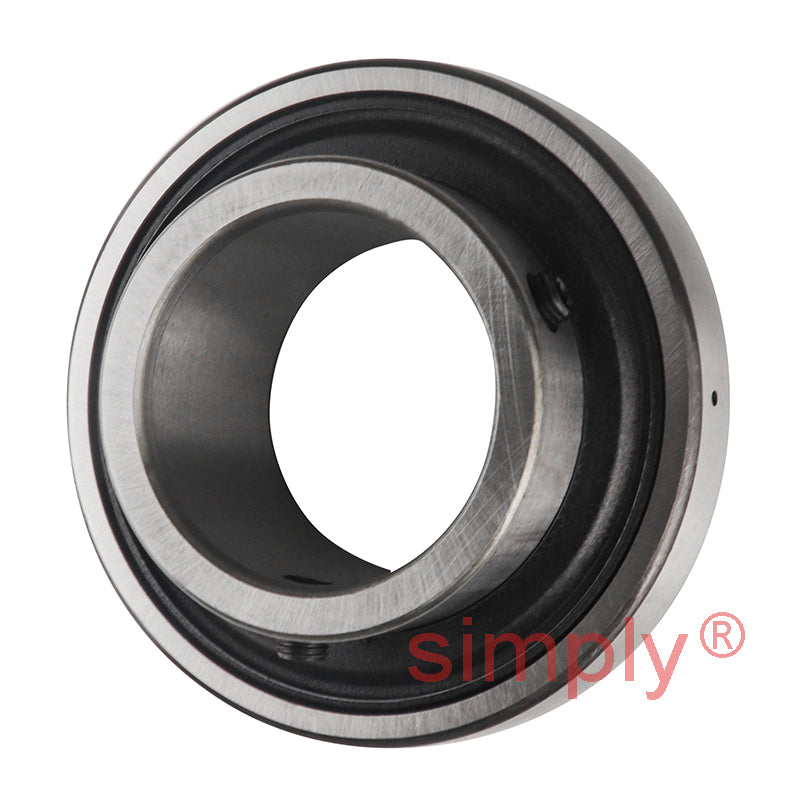

SKF YAT208 Grub Screw Type Bearing Insert with 40mm Bore 80mm Outside Diameter
SKF YAT208 Grub Screw Type Bearing Insert with 40mm Bore 80mm Outside Diameter
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
In stock
Price Break
10+
CHF 29.65
20+
CHF 27.98
30+
CHF 27.65
40+
CHF 27.32
50+
CHF 26.98
75+
CHF 26.65
100+
CHF 24.99
200+
CHF 24.65
250+
CHF 24.32
500+
CHF 23.99
1000+
CHF 23.32
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- YAT
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 36mm |
| C | 21mm |
| d1 | 51.8mm |
| s1 | 25.3mm |
| r1r2 min | 1mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 0.43 kg |
