SKU: YAT209-SKF
SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.36
20+
CHF 22.99
30+
CHF 22.72
40+
CHF 22.44
50+
CHF 22.17
75+
CHF 21.90
100+
CHF 20.53
200+
CHF 20.25
250+
CHF 19.98
500+
CHF 19.71
1000+
CHF 19.16
Description
Description
|

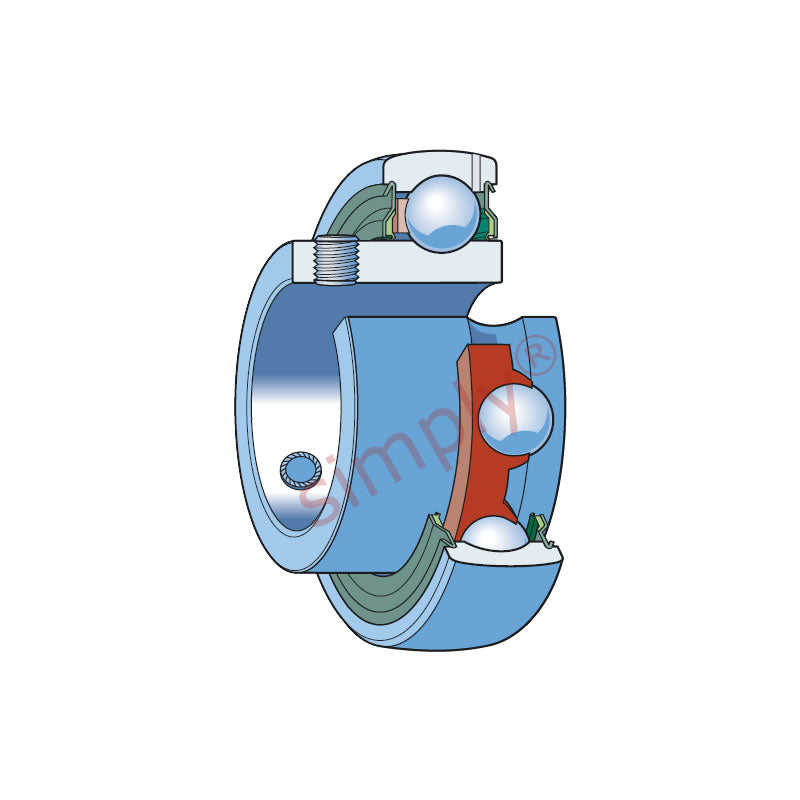

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- YAT
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 37mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 25.8mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.48 kg |
