SKU: YAT210-SKF

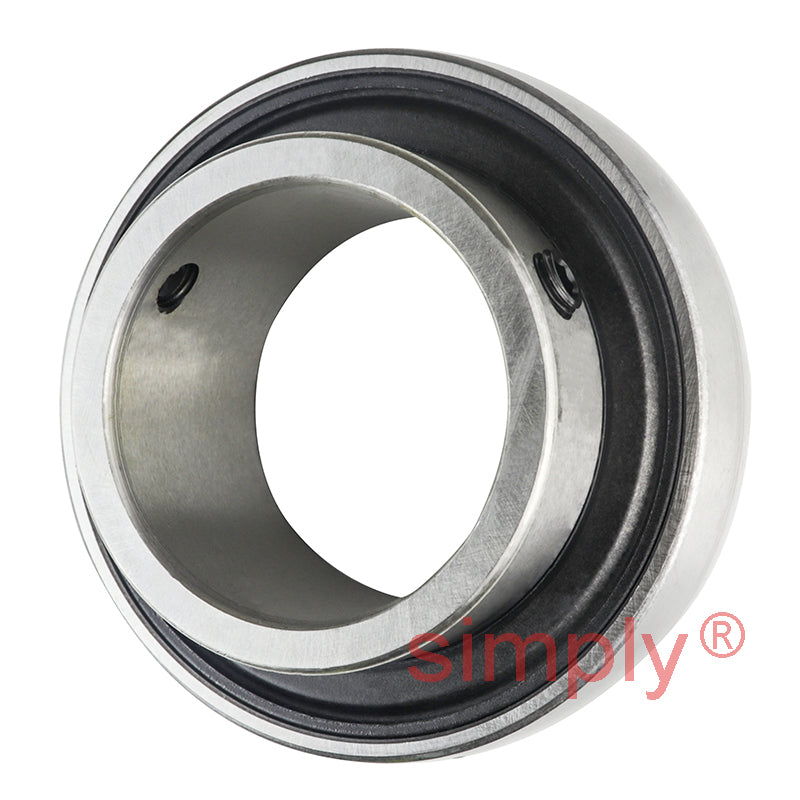

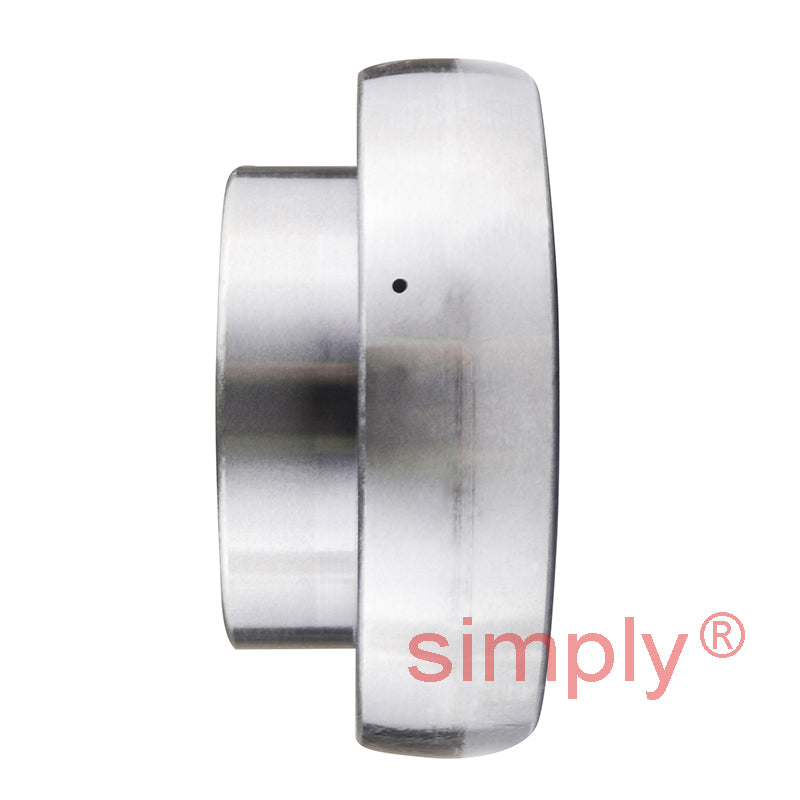

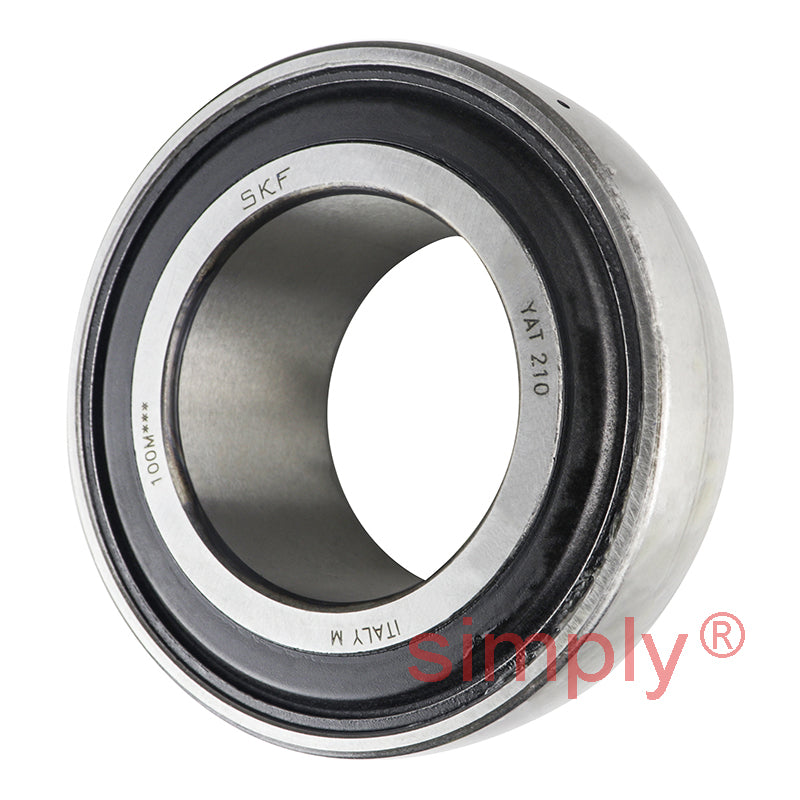

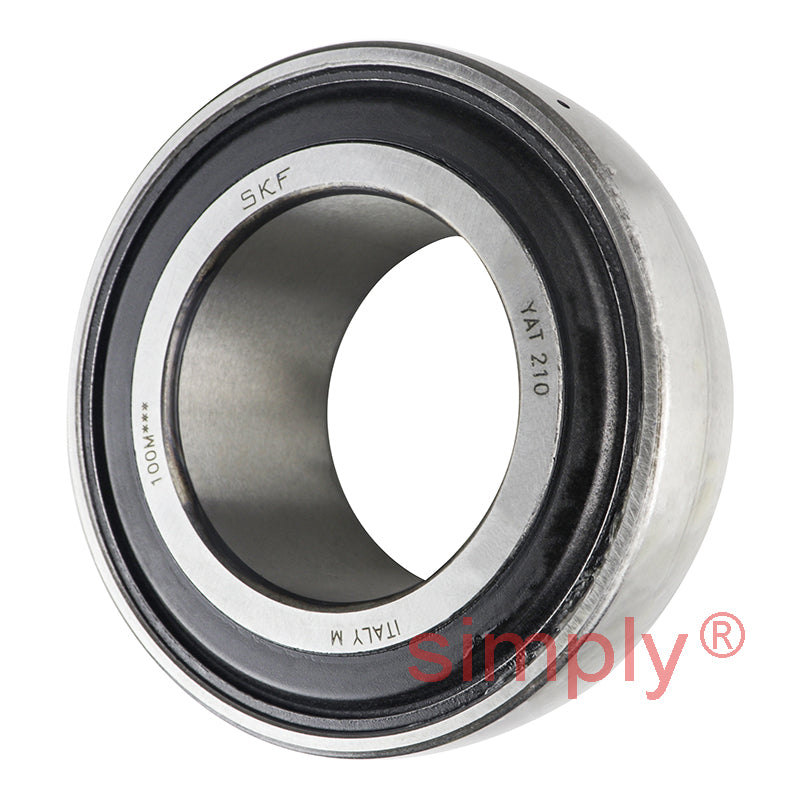

SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
SKF YAT210 Grub Screw Type Bearing Insert with 50mm Bore 90mm Outside Diameter
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.62
20+
CHF 37.39
30+
CHF 36.95
40+
CHF 36.50
50+
CHF 36.06
75+
CHF 35.61
100+
CHF 33.39
200+
CHF 32.94
250+
CHF 32.49
500+
CHF 32.05
1000+
CHF 31.16
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- YAT
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 38.8mm |
| C | 22mm |
| d1 | 62.5mm |
| s1 | 27.6mm |
| r1r2 min | 1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 9.54 kg |
