SKU: YEL207-2F-SKF

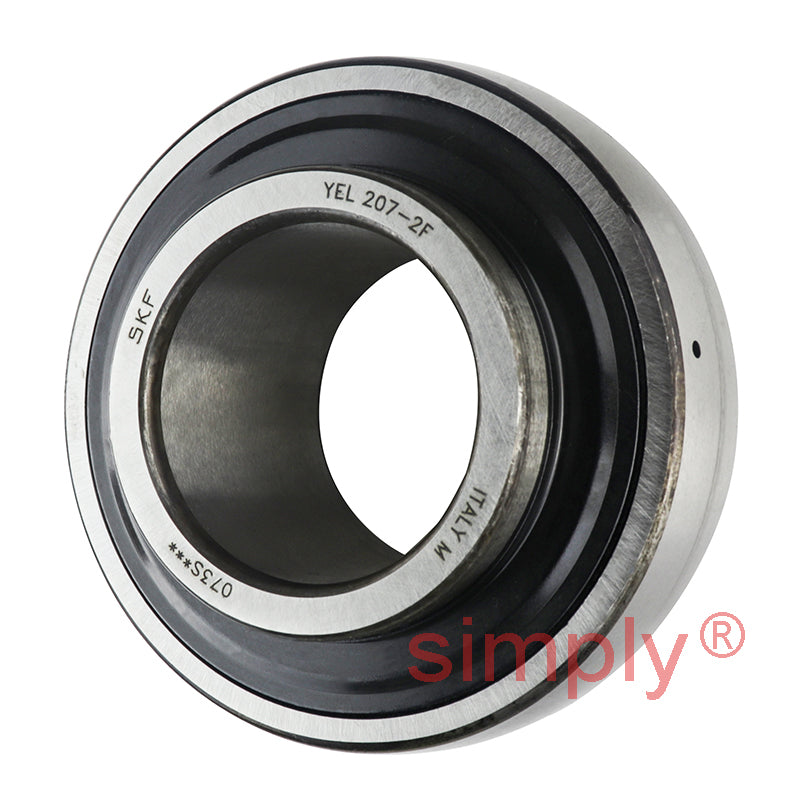

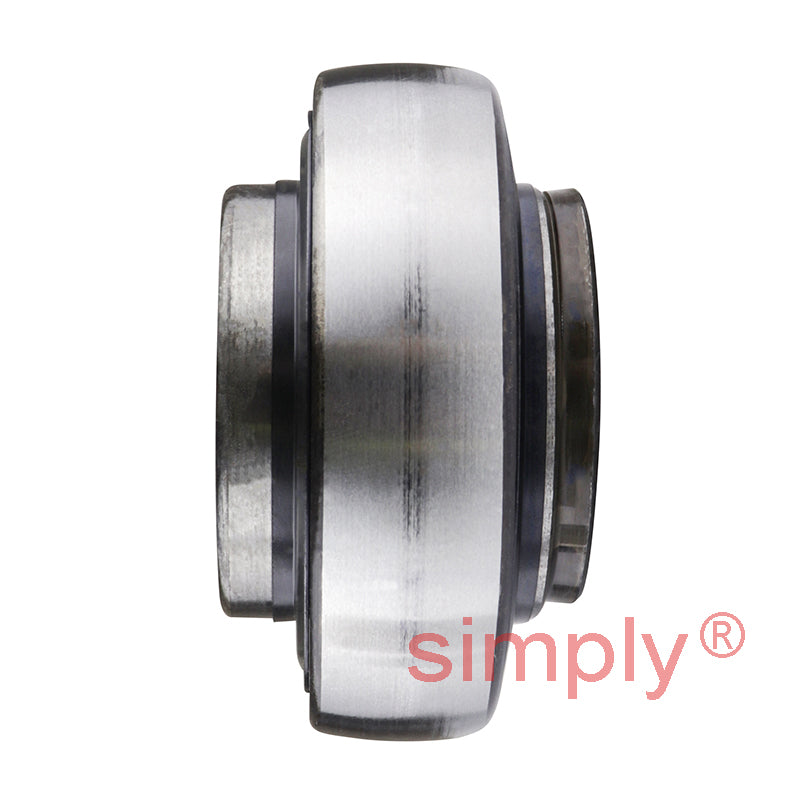

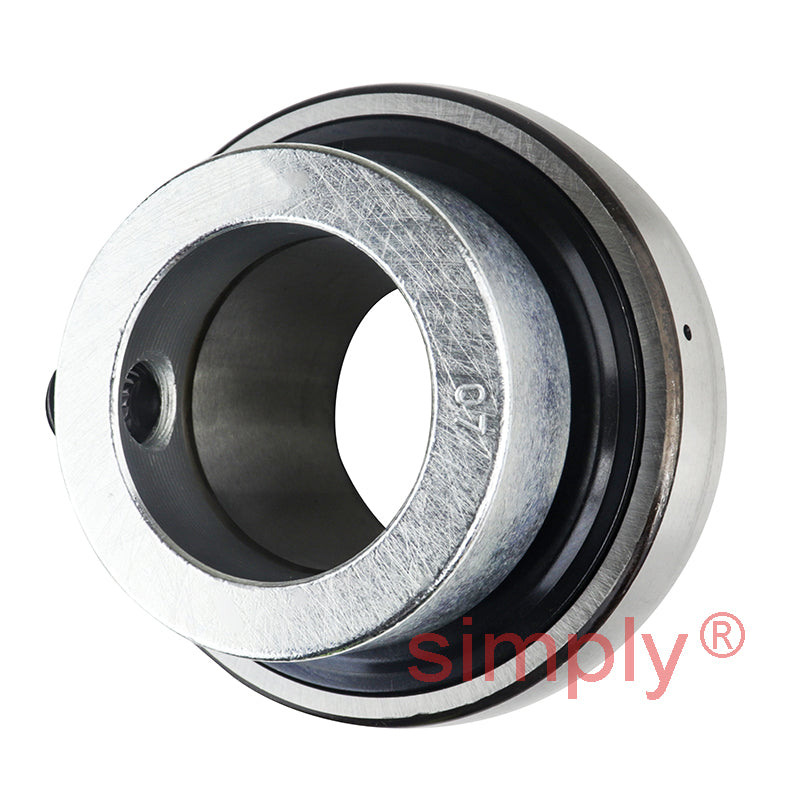

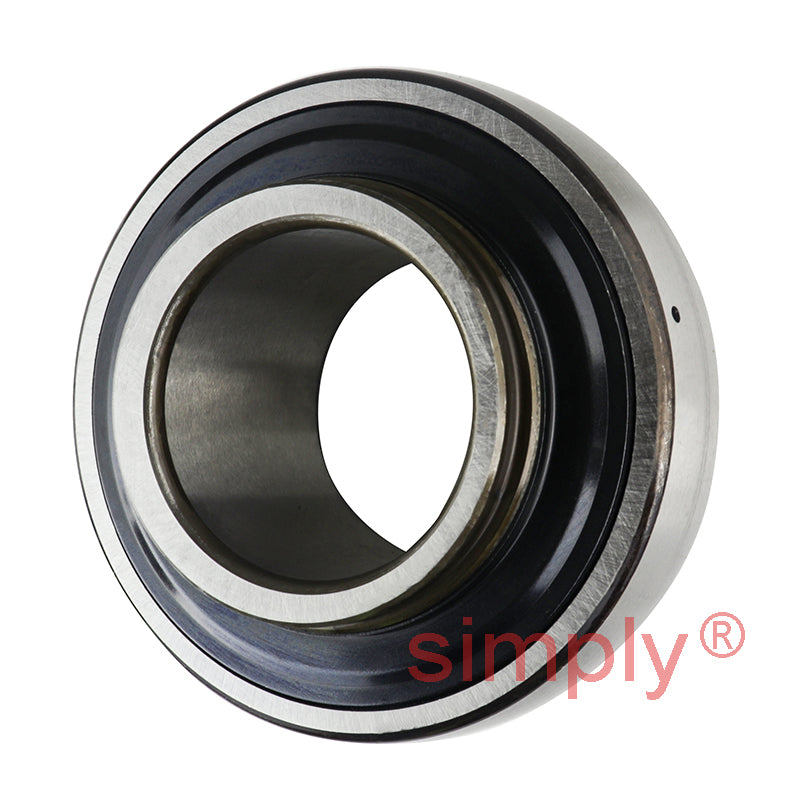

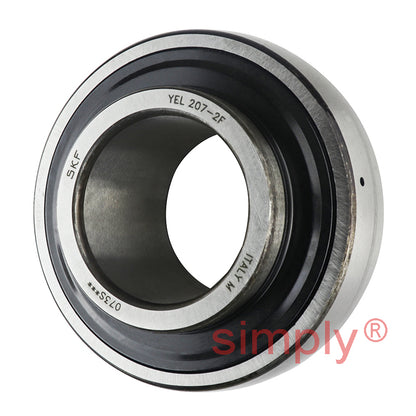

SKF YEL207-2F Eccentric Locking Collar Bearing Insert with 35mm Bore 72mm Outside Diameter
SKF YEL207-2F Eccentric Locking Collar Bearing Insert with 35mm Bore 72mm Outside Diameter
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
10+
CHF 35.02
20+
CHF 33.05
30+
CHF 32.66
40+
CHF 32.26
50+
CHF 31.87
75+
CHF 31.48
100+
CHF 29.51
200+
CHF 29.11
250+
CHF 28.72
500+
CHF 28.33
1000+
CHF 27.54
Description
Description
|

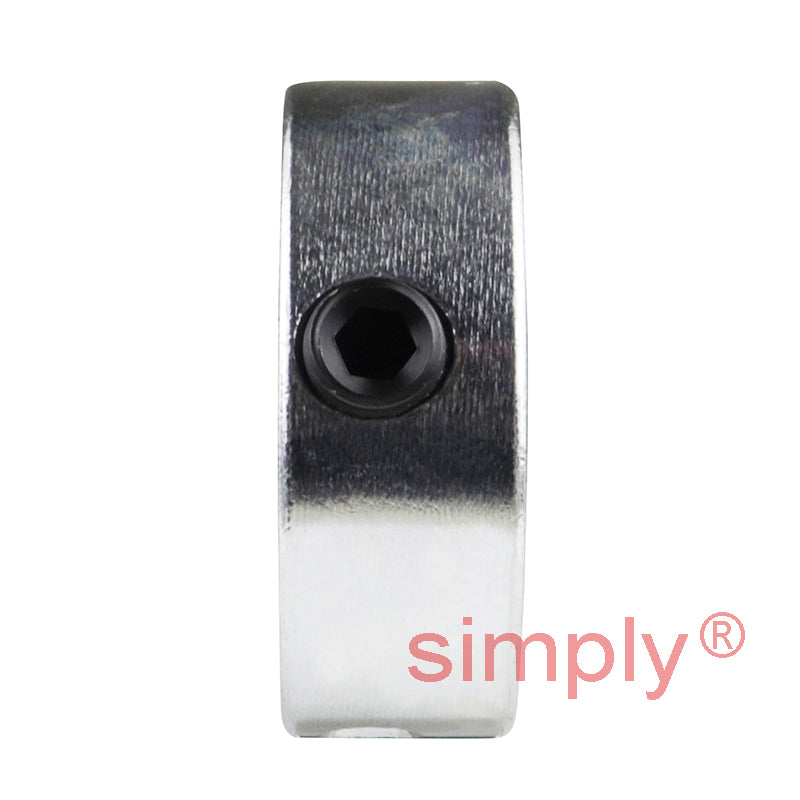

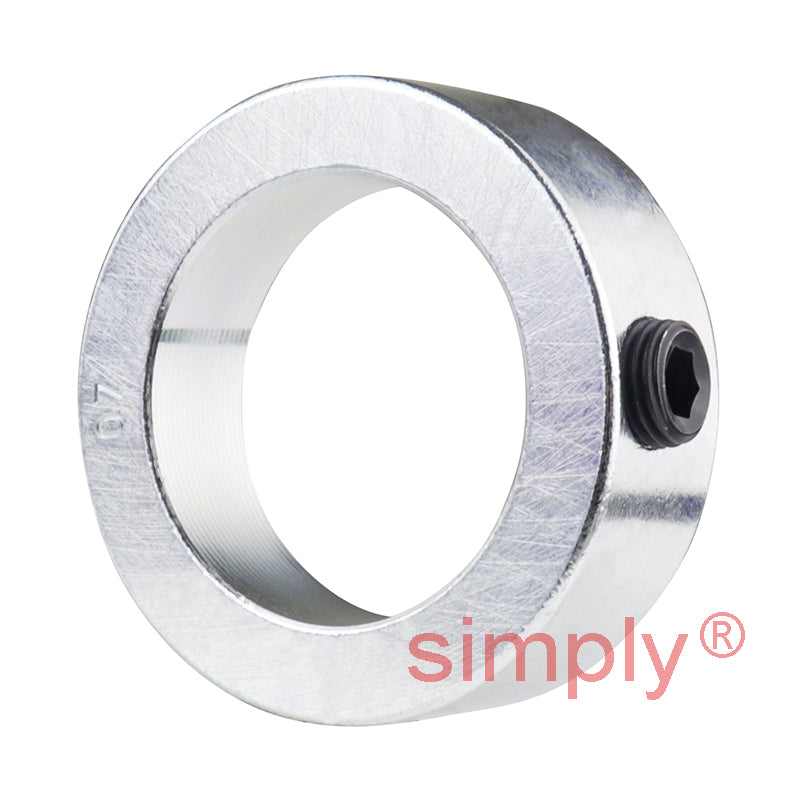

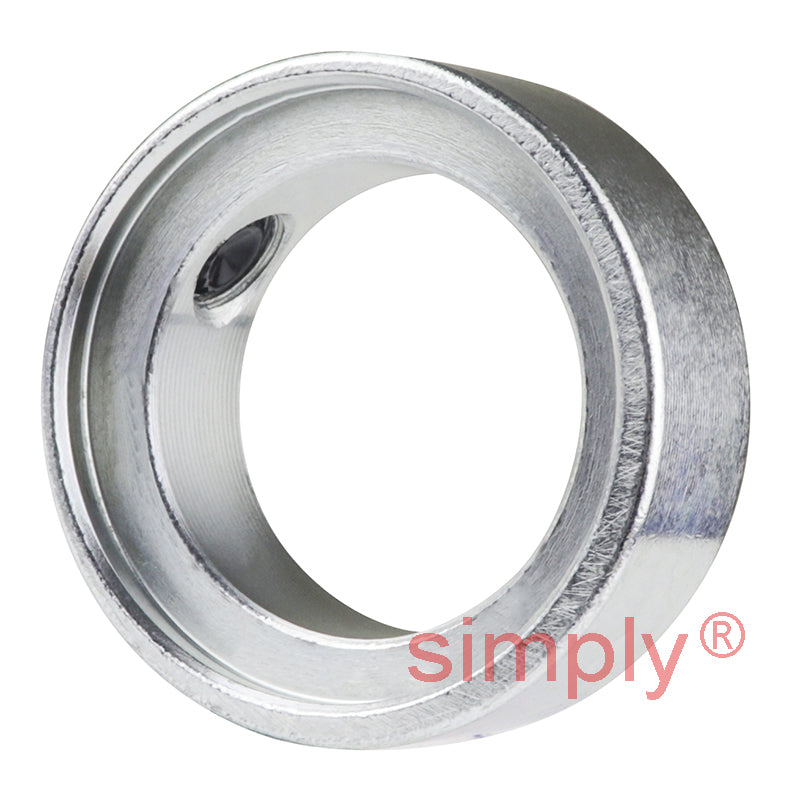

SKF YEL-2 Y-bearings with an Eccentric Locking Collar: Intended primarily for use in applications where the direction of rotation is constant. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. YEL 2 series bearings have an extended inner ring on both sides, which reduces the extent to which the inner ring can tilt on the shaft, which enables the bearing to run smoothly. The outer ring has two lubrication holes as standard. These bearings are fitted with the rugged standard integral seal. Plain sheet steel flingers are also provided if the bearing designation has a suffix of 2F, or rubberised sheet steel flingers (multiple seal) if the bearing designation has a suffix of 2RF/VL065. Benefits: Reduces inner ring tilting on shaft enabling the bearing to run smoothly, lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- YEL
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 51.1mm |
| C | 19mm |
| d1 | 46.1mm |
| d2 | 51.1mm |
| s1 | 32.3mm |
| r1r2 min | 1mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 0.55 kg |
